Aluminum solar shading RABEL 14020

for facademotorizedkinetic

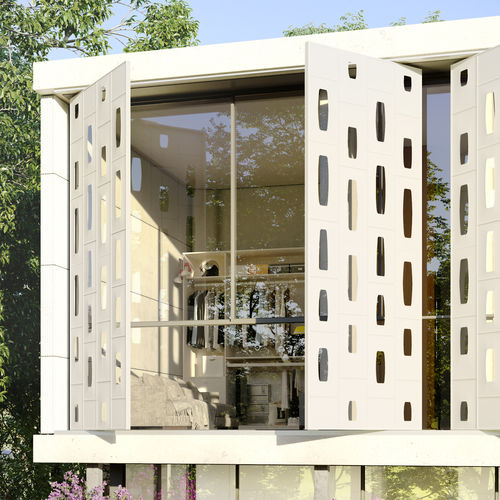

Rabel 14020 is a kinetic facade pivot shading system moving in the horizontal axis. The sashes can be operated electrically or manually independent from each other. The system can accommodate several sashes or facing each other. The sash width can be up to 2 meters and its height up to 5 meters thus making it possible to cover the building slaps. The system has been designed to allow for seamless integration with the building external cladding. Several versions are available to be used with fiber cement, HPL, Aluminium composite panels, wood, glass, ceramic and metal sheets. Provision has been taken to allow the use of cladding material on the shading system itself. In addition to the cladding material, the system comes with a variety of blades to be installed vertically or horizontally. In its standard configuration provision has been taken to allow for the installation of build in fly screen. A complete black out option is also available through the sealing of all the seams. Having a track depth of only 60mm and an installation depth of 150mm makes it the ideal choice for use in tight spaces. For the system to function a top box is not required. As a result, the shading can be fitted on existing openings as well as make use of the whole opening from slap to slap. The control can be via a wall mounted switch or a remote control in single or group mode.
