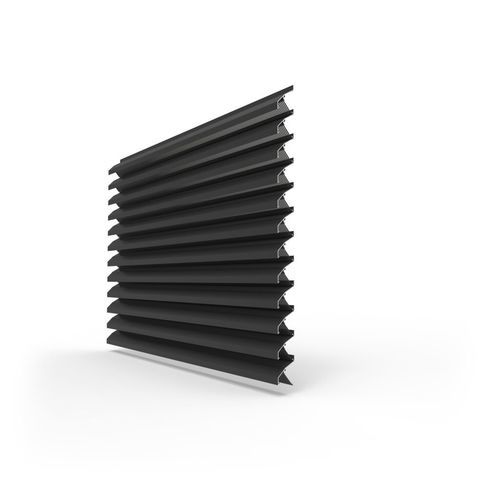

Panel cladding LINIUS® L.050IM1

aluminumalloygypsum plaster

Extruded aluminium profile with integrated insect mesh. This 50 mm pitch blade clipped into the standard blade support combines weather resistance and insect protection. No separate insect mesh is needed, resulting in considerable time savings during installation. This blade is also the ideal solution for applications where installation of a separate insect mesh is difficult. The L.050IM1 blade cimbines perfectly with the standard L.050.00 blade and L.050CL closed blade. Materials Aluminium extrusion, alloy EN AW 6063 T66 Finish - Anodised (20 micron) - Polyester powder coating RAL or Syntha Pulvin® colours (60 - 80 μ/40 μ (UK)) Doors Single and double doors available with standard RENSON® hardware and rotating on pivot Blade support Single blade support: type L.050.110 (width: 28 mm) Double blade support for thermal expansion: L.050.120 (width: 34 mm) (connecting piece for 2 blades)
