Aluminum cladding Linius L.170DAC

ribbedfor facades

Product overview

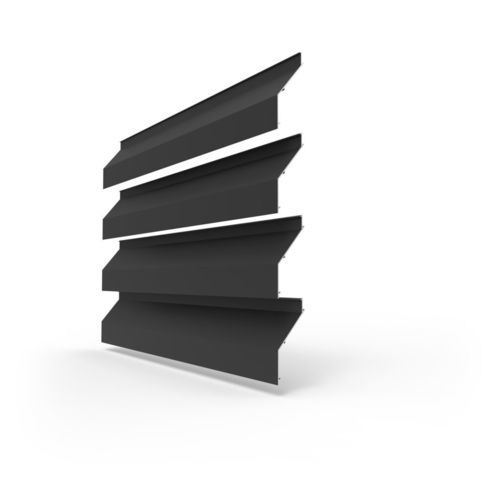

Extruded aluminium profile with a 170 mm slat step designed to visually match the acoustic versions L.170ACS.01 and L.170ACL.01 on the front façade. The dummy blind provides visual continuity where acoustic damping is not required.

Applications

• Façade cladding where acoustic attenuation is not necessary
• Areas requiring visual alignment with L.170ACS / L.170ACL acoustic systems

Product advantages

• Colorfast
• Compatible with L.170ACS and L.170ACL for uniform façade appearance

Downloads (available documents)

• Brochures B2B (Brochure)
• Installation manual (IM_Linius_en.pdf)
• Colour guide 2026 (CG_Indoor_Colour_Guide_en_2026.pdf)

Technical specifications

• Physical Free Passage (%): 37
• Slat step (mm): 170
• Lamella depth (mm): 70
• K-factor (entry): 41.1
• CE coefficient: 0.156
• K-factor (discharge): 37.6
• CD coefficient: 0.163
• Technical standard gauze type: -
• IP class: -
• Total louvre depth (mm): -
• Water resistance at 0 m/s (%): -
• Water resistance at 0.5 m/s (%): -
• Water resistance at 1.0 m/s (%): -
• Water resistance at 1.5 m/s (%): -
• Water resistance at 2.0 m/s (%): -
• Water resistance at 2.5 m/s (%): -
• Water resistance at 3.0 m/s (%): -
• Water resistance at 3.5 m/s (%): -
