Strip cladding Linius

aluminumverticalribbed

Description

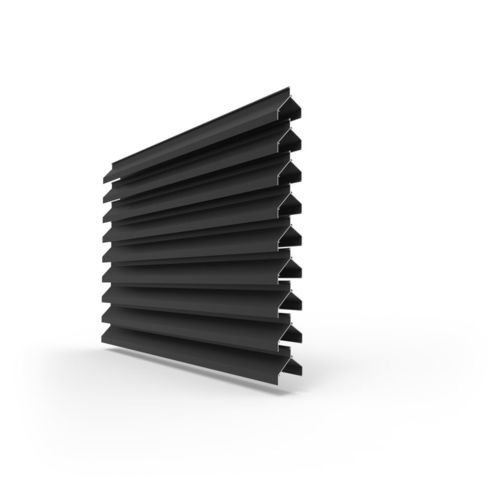

Extruded V-shaped aluminium profile with a lamella pitch of 66 mm. Applicable where free inlet area is required, such as in high-voltage cabins, for visual screening and where good water resistance is needed. For a louvre wall requiring high water-repellent properties, the lamella is mounted vertically, achieving water tightness class A @ 1.5 m/s. Horizontally the water resistance is class A @ 1 m/s. Lamella L.066V can be combined with lamella L.066 thanks to an identical appearance.

Key features

• V-shaped extruded aluminium profile
• Lamella pitch: 66 mm
• Compatible appearance with L.066 lamella

Downloads (available document names)

• Specification text
• DWG files
• B2B brochure
• Airflow certificate
• IP rating certificate
• Water resistance certificate
• Warranty certificate
• Installation manual
• 3D DWG files
• 3D DWG files carriers

Technical specifications

• Physical free area (%): 40.60
• Lamella pitch (mm): 66
• Standard gas type: -
• IP class: -
• Lamella depth (mm): 61.5
• Total grille depth (mm): -
• K-factor intake: 66.1
• CE coefficient: 0.123
• K-factor exhaust: 79.7
• CD coefficient: 0.112
• Water resistance at 0 m/s (%): -
• Water resistance at 0.5 m/s (%): -
• Water resistance at 1.0 m/s (%): -
• Water resistance at 1.5 m/s (%): -
• Water resistance at 2.0 m/s (%): -
• Water resistance at 2.5 m/s (%): -
• Water resistance at 3.0 m/s (%): -
• Water resistance at 3.5 m/s (%): -
