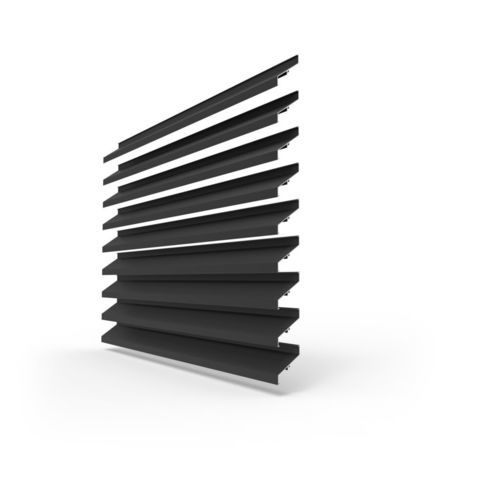

Aluminum cladding Linius L.075HF

ribbed

Product description
Extruded aluminium louvre profile designed for minimal airflow resistance. Suitable for applications requiring high airflow combined with high water resistance. Recommended solution for air discharge applications.

Downloads

• Brochures B2B
• DWG files
• Specification text
• Certificate air passage
• Certificate water resistance
• Warranty certificate
• Installation manual
• Brochures B2C
• EPD
• 3D DWG files supports
• 3D DWG files
• Colour guide 2026

Technical Specifications
slat step (mm): 75
technical.standaardgaastype: -
technical.ip_klasse: -
technical.lameldiepte_mm: 55
Total louvre depth (mm): -
K-factor (entry): 13.1
CE coefficient: 0.276
K-factor (discharge): 14.2
CD coefficient: 0.265
Water resistance at 0 m/s (%): 90.4
Water resistance at 0.5 m/s (%): 87.3
Water resistance at 1.0 m/s (%): 84.8
Water resistance at 1.5 m/s (%): 81.3
Water resistance at 2.0 m/s (%): <80
Water resistance at 2.5 m/s (%): -
Water resistance at 3.0 m/s (%): -
Water resistance at 3.5 m/s (%): -

Features / technical specifications

• Slat step: 75 mm
• Lamella depth: 55 mm
• K-factor (entry): 13.1
• CE coefficient: 0.276
• K-factor (discharge): 14.2
• CD coefficient: 0.265
• Water resistance: 90.4% (0 m/s), 87.3% (0.5 m/s), 84.8% (1.0 m/s), 81.3% (1.5 m/s), <80% (2.0 m/s)
• Designed as an extruded aluminium profile offering minimal resistance to airflow, suited for large airflow and high water resistance applications; recommended for air discharge.
