Strip cladding LINIUS® L.050HFgypsum plasteralloyaluminum
Add to favorites
Compare this product
Characteristics
- Configuration
- strip
- Material
- aluminum, alloy, gypsum plaster
- Installation
- vertical
- Finish
- ribbed
- Appearance
- metal look
- Color
- silver-colored
Description

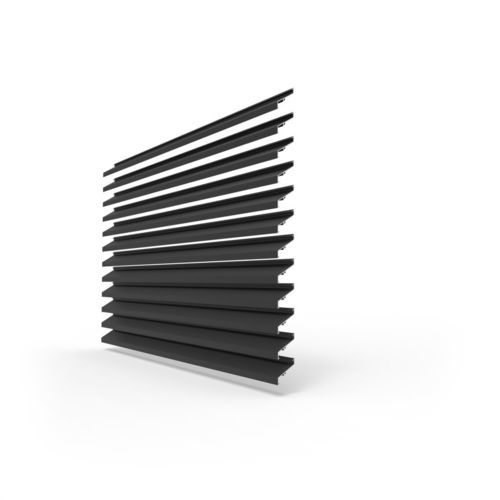

Extruded aluminum profile with high airflow and a louvre pitch of 50 mm. Physical free area: 60%. Variable spacing between 50 and 100 mm is possible. Often used in cases where the spacing between the louvers reflects the aesthetics of the overall project. The L.050HF louver can also be bent with a minimum radius of 800 mm.
Finish
- Anodised (20 micron)
- Polyester powder coating RAL or Syntha Pulvin® colours (60 - 80 μ/40 μ (UK))
Mesh
Fixed to rear of the support structure.
Doors
Single and double doors available with standard RENSON® hardware and rotating on pivot
Blade support
Single blade support: type L.050.110
Double blade support for thermal expansion: L.050.120 (connecting piece for 2 blades)
Finish
- Anodised (20 micron)
- Polyester powder coating RAL or Syntha Pulvin® colours (60 - 80 μ/40 μ (UK))
Mesh
Fixed to rear of the support structure.
Doors
Single and double doors available with standard RENSON® hardware and rotating on pivot
Blade support
Single blade support: type L.050.110
Double blade support for thermal expansion: L.050.120 (connecting piece for 2 blades)
