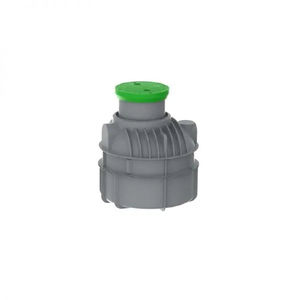

Rainwater tank ROCKO Ø1500

water storageundergroundabove-ground

Short description
The Rocko Ø1500 is a vertical rainwater tank suitable for residential and commercial applications. Its compact footprint provides significant storage capacity while minimising excavation and site footprint. Manufactured in a single moulded piece of polyethylene (PE), the tank is fully watertight with a wall thickness of 8–14 mm.

Materials & Construction

• Material: polyethylene (PE), single-piece moulding, 100% recyclable
• 100% watertight single-piece construction
• Wall thickness: 8–14 mm
• Reinforcing ribs for structural stability and protection in high groundwater conditions
• Anchor holes for fixing to a concrete slab when required
• Integrated extension ring for height adaptation to site conditions
• DN 600 dome/manhole integrated; dome can be shortened to match terrain
• PE lid with gasket and hinged closure (DN 600) included; lid load-bearing capacity up to 200 kg

Installation & Access

• Designed primarily for underground installation; can also be installed above ground where suitable
• Vertical shape reduces excavation volume and backfill material
• Facilitates transport and handling on site; often installable without heavy machinery
• DN 600 manhole ensures easy maintenance access
• Height and access adjustable via extension ring and dome shortener

Technical data & Dimensions (table)
Volume [L] | Code | Dimensions Ø x H [mm] | Cover [mm] | Weight [kg]
2,000 | 7100067450 | Ø1500 x 2000 | Ø600 | 79
2,350 | 7100067460 | Ø1500 x 2250 | Ø600 | 90
2,700 | 7100067470 | Ø1500 x 2500 | Ø600 | 101

Advantages

• Space-saving vertical design with good storage capacity per footprint
• Cost- and time-efficient: reduced excavation and faster installation
• Easy handling and installation on site; often no heavy equipment required
• High structural stability due to reinforcing ribs and robust wall thickness
• Suitable where groundwater levels are high (anchor holes provided)
• Durable, corrosion-resistant and recyclable polyethylene construction
• Maintenance-friendly access via DN 600 manhole
• Adaptable to site conditions using extension ring and dome shortener

Technical specifications

• Model name: Rocko Ø1500
• Construction material: Polyethylene (PE), single-piece moulding
• Watertightness: 100% watertight construction
• Wall thickness: 8–14 mm

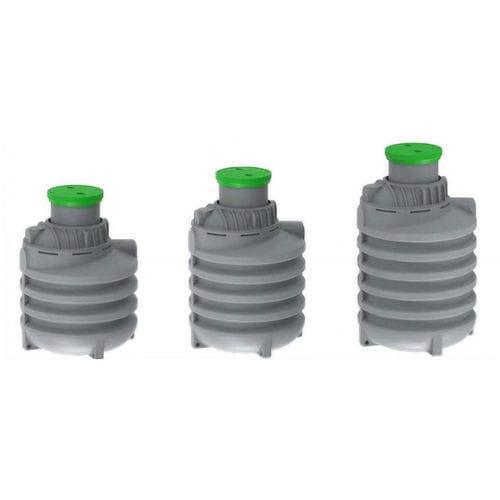

• Available nominal storage volumes: 2,000 L; 2,350 L; 2,700 L
• Product codes: 7100067450 (2000 L); 7100067460 (2350 L); 7100067470 (2700 L)
• Dimensions (Ø x H): Ø1500 x 2000 mm; Ø1500 x 2250 mm; Ø1500 x 2500 mm
• Cover / manhole: Ø600 (DN 600) manhole; PE lid with gasket and hinged closure included
• Lid load-bearing capacity: up to 200 kg (PE lid, DN 600)
• Weight (empty): 79 kg (2000 L), 90 kg (2350 L), 101 kg (2700 L)
• Installation: underground or above-ground; integrated dome attachment can be shortened
• Anchoring: anchor holes provided for fixing to concrete slab if required
• Additional features: reinforcing ribs for protection and stability; PE extension ring for height/terrain adaptation
• Sustainability: PE is recyclable; low maintenance and corrosion-resistant
