Rainwater retention tank ROCKO

water storagein-groundclosed

Presentation

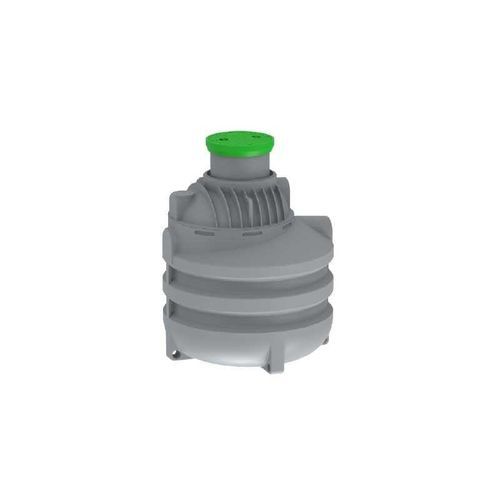

Rainwater recovery tank of the Rocko series, designed for buried or freestanding storage, available in capacities 3,200 L, 4,000 L and 5,000 L.

Properties

• Freestanding tank
• Buried tank
• Material: polyethylene
• One-piece 100% watertight
• Excellent structural stability
• Wall thickness: 8–14 mm
• Option to adjust riser height to site requirements
• Polyethylene recyclable at end of life

Visible elements and technical points

• Cover
• Ring
• Extension: can be cut and adjusted to height
• Inlet
• Outlet

Dimensions of Rocko Ø1800 storage tanks
Volume [L] | Code | Dimensions A x B x C [mm] | Cover [mm] | Weight [kg]
3,200 | 7100067260 | Ø1800 x 2350 | Ø800 | 136
4,000 | 7100067270 | Ø1800 x 2700 | Ø800 | 155
5,000 | 7100067280 | Ø1800 x 3100 | Ø800 | 182

Technical sheet
Technical data sheets (PDF) available for each capacity (specific documentation for 3,200 L, 4,000 L and 5,000 L).

Characteristics / technical specifications

• Series: Rocko
• Use: rainwater recovery and storage
• Shape: cylindrical tank (Ø1800)
• Available capacities: 3,200 L, 4,000 L, 5,000 L
• Material: polyethylene (one-piece)
• Watertightness: 100% (one-piece)
• Wall thickness: 8–14 mm
• Cover diameter: Ø800 mm
• Telescopic/adjustable riser option
• Recyclable at end of life
