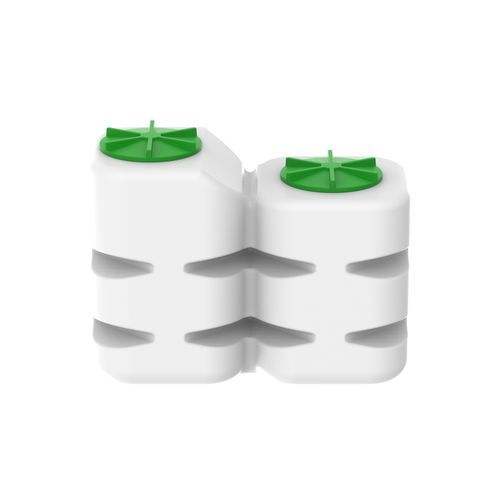

Drinking water storage tank ROQUADRO

transportabove-groundclosed

Description
RoQuadro tanks are rotationally molded from nature-friendly special polyethylene (PE Dowlex) certified for drinking water storage. They are intended for above-ground or basement installation and can also be used for transportation of drinking water.

Available sizes
Volume [L] — CODE — Dimensions L x D x H [mm] — Cover [mm] — DWG file — Drawing (PDF) — Render (JPG)
250 — 410326 — 600 x 600 x 928 — 300 — DWG available on request — RoQuadro250-nacrt.pdf — RoQuadro250.jpg
500 — 410406 — 760 x 760 x 1100 — 300 — DWG available on request — RoQuadro500-nacrt.pdf — RoQuadro500.jpg
750 — 410606 — 760 x 760 x 1600 — 300 — DWG available on request — RoQuadro750-nacrt.pdf — RoQuadro750.jpg
1000 — 410766 — 760 x 1520 x 1100 — 300 — DWG available on request — RoQuadro1000-nacrt.pdf — RoQuadro1000.jpg
2000 — 410946 — 760 x 2250 x 1600 — 300 — DWG available on request — RoQuadro2000-nacrt.pdf — RoQuadro2000.jpg

Technical specifications

• Material: nature-friendly special polyethylene (PE Dowlex).
• Certification: suitable certificate for storage of drinking water.
• Installation: designed for above-ground or basement installation.
• Use: storage and transportation of drinking water.
• Available volumes and codes: 250 L (410326), 500 L (410406), 750 L (410606), 1000 L (410766), 2000 L (410946).
• Dimensions (L x D x H [mm]): 250 L – 600 x 600 x 928; 500 L – 760 x 760 x 1100; 750 L – 760 x 760 x 1600; 1000 L – 760 x 1520 x 1100; 2000 L – 760 x 2250 x 1600.
• Cover diameter: 300 mm (all sizes).
• Technical files: DWG files available on request; PDF drawings and JPG renders provided for each size.
