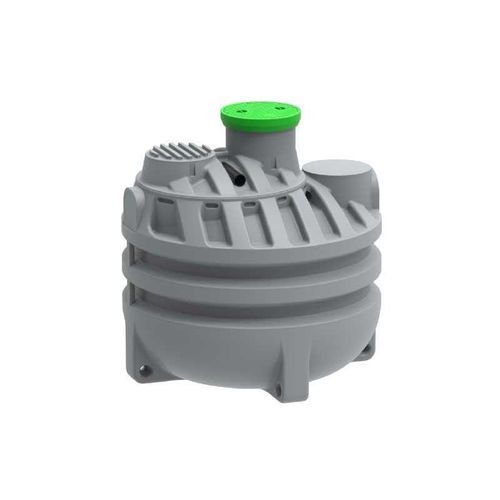

Rainwater retention tank ROCKO Ø2300

water storageclosedfree-standing

Product
Rainwater recovery tank, commercial designation Rocko Ø2300. Available capacities: 6,000 L, 7,500 L, 8,700 L and 10,000 L.

Properties

• Self-supporting tank
• Burial-capable tank
• Material: polyethylene
• One-piece, 100% watertight construction
• Excellent static stability
• Wall thickness: 8–14 mm
• Height extension adjustable to site conditions (telescopic/adaptable)
• Polyethylene recyclable at end of life

Access points / visible elements (image hotspots)

• Cover
• Ring
• Extension (can be cut and adjusted to height)
• Inlet
• Outlet

Dimensions of Rocko Ø2300 storage tanks – 6,000 - 10,000 L
Volume [L] | Code | Dimensions A x B x C [mm] | Cover [mm] | Weight [kg]
6,000 | 7100067340 | Ø2300 x 2400 | 1x Ø800 or 2x Ø600 | 221
7,500 | 7100067350 | Ø2300 x 2750 | 1x Ø800 or 2x Ø600 | 252
8,700 | 7100067360 | Ø2300 x 3100 | 1x Ø800 or 2x Ø600 | 283
10,000 | 7100067370 | Ø2300 x 3500 | 1x Ø800 or 2x Ø600 | 315

Remarks
One-piece polyethylene tank designed for rainwater recovery and storage. Height extension can be adapted to site conditions. Multiple sizes available with cover options (Ø800 or 2×Ø600).

Characteristics / technical specifications

• Model: Rocko Ø2300
• Types: self-supporting or buryable tank
• Material: polyethylene (recyclable at end of life)
• Construction: one-piece, 100% watertight
• Wall thickness: 8–14 mm
• Statics: excellent static stability
• Height: telescopic/adaptable extension to suit terrain
• Access options: 1x Ø800 cover or 2x Ø600 covers
• Available capacities: 6,000 L, 7,500 L, 8,700 L, 10,000 L (see dimensions table for codes and weights)
• Connection points: inlet, outlet (plan connections according to installation)
