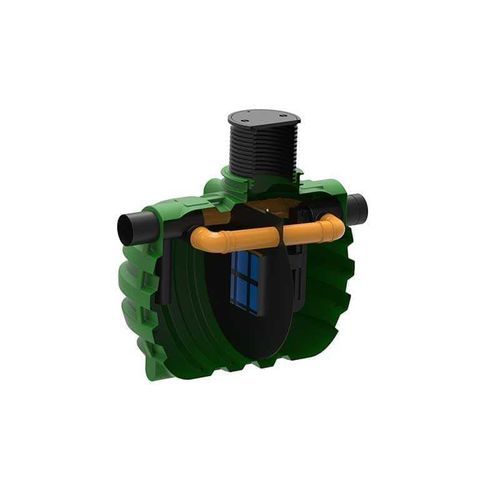

Polyethylene oil separator ROSEP BY-PASS 20

Overview
Separators with a 20% bypass handle the full flow for rainfall intensities up to 6.5 mm/h (≈99% of events). These units are specified for parking areas where providing complete treatment for extreme peak flows is considered an acceptable risk (for example, low probability of a large spill coinciding with heavy rainfall).

Dimensions and main characteristics

• NS [L/s] | Code | Total volume [L] | Sedimentation tank volume [L] | Hydrocarbon separator volume [L] | Maximum oil capacity [L] | Dimensions A x B x C [mm] | Pipe DN [mm] | Cover [mm] | Plan | Datasheet | Render
• 15/3 | 7300068800 | 2.200 | 830 | 910 | 440 | 2110 x 1400 x 2100 | Ø600 | 200 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 30/6 | 7300068810 | 3.000 | 1.110 | 1.250 | 670 | 2680 x 1400 x 2100 | Ø600 | 200 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 50/10 | 7300068500 | 3.500 | 1.410 | 1.200 | 690 | 2.290 x 1.800 x 2.600 | Ø600 | 250 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 80/16 | 7300068820 | 5.000 | 1.980 | 1.820 | 620 | 2.760 x 1.800 x 2.600 | Ø600 | 315 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 100/20 | 7300068840 | 6.000 | 2.010 | 2.560 | 690 | 3.130 x 1.800 x 2.600 | Ø600 | 315 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 150/30 | 7300068850 | 8.000 | 2.710 | 3.450 | 860 | 2.820 x 2.300 x 2.850 | Ø600 | 400 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 200/40 | 7300068860 | 10.000 | 3.780 | 3.670 | 990 | 3.230 x 2.300 x 2.850 | Ø600, Ø800 | 400 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 250/50 | 7300068870 | 12.000 | 5.070 | 4.710 | 1.140 | 3.760 x 2.300 x 2.850 | Ø600, Ø800, Ø250 | 400 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 325/65 | 7300068830 | 16.000 | 5.950 | 6.130 | 2.020 | 4.840 x 2.300 x 2.850 | Ø600, Ø800, Ø250 | 500 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 400/80 | 7300068880 | 22.000 | 7.810 | 7.670 | 2.020 | 6.470 x 2.300 x 2.850 | 2xØ600, Ø800 | 500 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 500/100 | 7300068890 | 25.000 | 10.620 | 7.840 | 3.790 | 8.750 x 2.300-2.730 x 2.850 | 2xØ600, Ø800 | 600 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 650/125 | 7300068510 | 30.000 | 11.920 | 12.010 | 4.260 | 9.830 x 2.300-2.730 x 2.850 | 2xØ600, Ø800 | 600 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 700/150 | 7300068520 | 35.000 | (manufacturer internal values) | (manufacturer internal values) | (internal values) | 11.570 x 2.300-2.850 x 2.850 | 2xØ600, Ø800 | 600 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 1.000/200 | 7300068530 | 40.000 | (manufacturer internal values) | (manufacturer internal values) | (internal values) | 12.550 x 2.300-2.850 x 2.850 | 2xØ600, Ø800 | 800 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 1.250/250 | 7300068540 | 45.000 | (manufacturer internal values) | (manufacturer internal values) | (internal values) | 12.410 x 2.300-2.850 x 2.850 | Ø600 | 1.000 | Plan (PDF) available | Datasheet (PDF) available | Render image available
• 1.500/300 | 7300068550 | 50.000 | (manufacturer internal values) | (manufacturer internal values) | (internal values) | 13.490 x 2.300-2.850 x 2.850 | Ø600 | 1.000 | Plan (PDF) available | Datasheet (PDF) available | Render image available

Notes on the table
The table above lists the NS sizes available for the Rosep version with 20% bypass. For multiple sizes, documentation available includes plans (PDF), datasheets (PDF) and render images. Dimensions A x B x C, volumes and pipe diameters vary depending on NS size.
