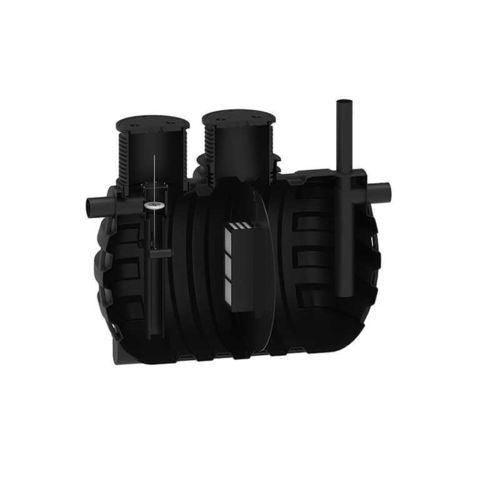

Polyethylene oil separator ROPETROL

Description
The Class I coalescing separators limit hydrocarbon concentration to ≤ 5 mg/l. The RoPetrol oil separator is equipped with a coalescing filter, an automatic shut-off device (at the inlet) and/or an electronic alarm system. Coalescing filters are mounted on the separation wall and can be easily cleaned and replaced. The tank is made of special conductive polyethylene. The RoPetrol oil separator can be installed inside Ex zones.

Images available

• RoPetrol NS 10 – product image
• RoPetrol NS 15 – product image
• RoPetrol NS 15 (6000 L) – product image
• RoPetrol NS 20 (8000 L) – product image
• RoPetrol NS 30 (8000 L) – product image
• RoPetrol NS 30 (12000 L) – product image
• RoPetrol NS 40 (10000 L) – product image
• RoPetrol NS 40 (16000 L) – product image

Dimensions - RoPetrol oil traps
Volume [L] | NS [L/s] | Code | Dimensions A x B x C [mm] | Cover [mm] | Pipes DN [mm] | Plan | Render
5.000 | NS 10 | 7300072758 | 2660 x 1800 x 2600 | 200 | Ø250, Ø400, Ø600 | (plan available) | (render available)
5.000 | NS 15 | 7300075998 | 3030 x 1800 x 2600 | 200 | Ø250, Ø400, Ø600 | (plan available) | (render available)
6.000 | NS 20 | 7300075888 | 2870 x 2300 x 2850 | 250 | Ø250, Ø400, Ø600 | (plan available) | (render available)
8.000 | NS 30 | 7300072738 | 3330 x 2300 x 2850 | 250 | Ø250, Ø400, Ø600 | (plan available) | (render available)
10.000 | NS 40 | 7300072788 | 4360 x 2300 x 2850 | 315 | Ø250, Ø400, Ø600 | (plan available) | (render available)

Characteristics / technical specifications

• Separation class: coalescence Class I (hydrocarbon concentration ≤ 5 mg/l)
• Filtration: coalescing filter mounted on separation wall, cleanable and replaceable
• Safety: automatic shut-off device (at inlet) and/or electronic alarm system
• Tank material: special conductive polyethylene
• Installation: suitable for installation inside Ex (explosive) zones
• Available volumes: 5,000 L, 6,000 L, 8,000 L, 10,000 L (depending on NS variant)
• Piping options: provisions for Ø250, Ø400, Ø600 depending on model
• Cover diameters indicated per model (e.g. 200 mm, 250 mm, 315 mm)
