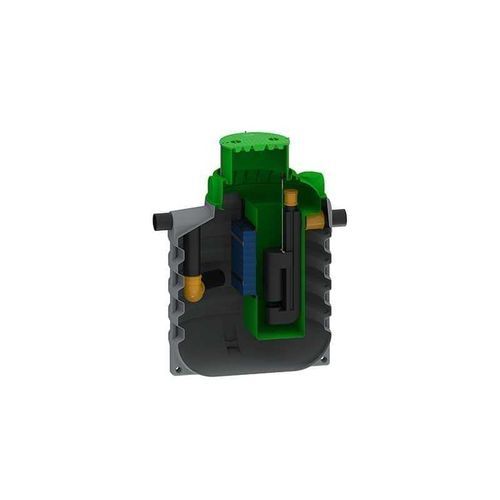

Polyethylene oil separator ROOIL I

Description
All light-liquid separators are supplied ready for buried installation. Sealing is guaranteed up to ground level. Low maintenance costs are achieved thanks to an interior designed for easy cleaning. The large access opening allows the coalescing filter to be removed and cleaned with ease.

Key features

• Product family: RoOil – Class I
• Installation: buried
• Sealing: guaranteed up to ground level
• Maintenance: interior designed for easy cleaning
• Coalescing filter: large opening for easy removal and cleaning

Sizes and available variants (excerpt from dimension table)

• Volume: 1,200 L | Code: 7300775940 | Dimensions Ø1300 x 1500 mm | Flow: 1.5 | Pipe diameter: DN 110 | Plan (PDF): RoOilNS1,5
• Volume: 1,500 L | Code: 7300775950 | Dimensions Ø1300 x 1750 mm | Flow: 3 | Pipe diameter: DN 110 | Plan (PDF): RoOilNS3
• Volume: 1,700 L | Code: 7300775970 | Dimensions Ø1300 x 2000 mm | Flow: 6 | Pipe diameter: DN 125 | Plan (PDF): RoOilNS6
• Volume: 2,350 L | Code: 7300772750 | Dimensions Ø1500 x 2150 mm | Flow: 10 | Pipe diameter: DN 160 | Plan (PDF): RoOilNS10
• Volume: 2,700 L | Code: 7300775990 | Dimensions Ø1500 x 2400 mm | Flow: 15 | Pipe diameter: DN 200 | Plan (PDF): RoOilNS20
• Volume: 4,000 L | Code: 7300775880 | Dimensions Ø1800 x 2350 mm | Flow: 20 | Pipe diameter: DN 200 | Plan (PDF): RoOilNS20
• Volume: 6,000 L | Code: 7300772730 | Dimensions Ø2300 x 2350 mm | Flow: 30 | Pipe diameter: DN 250 | Plan (PDF): RoOilNS30
• Volume: 7,500 L | Code: 7300772780 | Dimensions Ø2300 x 2700 mm | Flow: 40 | Pipe diameter: DN 250 | Plan (PDF): RoOilNS40
• Volume: 10,000 L | Code: 7300772760 | Dimensions Ø2300 x 3400 mm | Flow: 50 | Pipe diameter: DN 250 | Plan (PDF): RoOilNS50

Available images (preview)

• roto-lovilnik-olj-rooil-razred-1-NS1-5.jpg (NS 1,5)
• roto-lovilnik-olj-rooil-razred-1-NS3.jpg (NS 3)
• roto-lovilnik-olj-rooil-razred-1-NS6.jpg (NS 6)
• roto-lovilnik-olj-rooil-razred-1-NS10.jpg (NS 10)
• roto-lovilnik-olj-rooil-razred-1-NS15.jpg (NS 15)
• roto-lovilnik-olj-rooil-razred-1-NS20.jpg (NS 20)
• roto-lovilnik-olj-rooil-razred-1-NS30.jpg (NS 30)
• roto-lovilnik-olj-rooil-razred-1-NS40.jpg (NS 40)
• roto-lovilnik-olj-rooil-razred-1-NS50.jpg (NS 50)

Notes

• Separators are delivered ready for burial.
• Design reduces maintenance and facilitates access to the coalescing filter.

Technical specifications

• Range: RoOil – Class I
• Model range: NS 1.5 to NS 50
• Available volumes: 1,200 L; 1,500 L; 1,700 L; 2,350 L; 2,700 L; 4,000 L; 6,000 L; 7,500 L; 10,000 L
• Material: not explicitly specified on the page
• Mounting: buried installation
• Sealing: up to ground level
• Coalescing filter: removable for cleaning
• Interior: easy-to-clean surface (reduced maintenance)
• Indicative connection diameters: DN 110, DN 125, DN 160, DN 200, DN 250 (depending on model)
• Typical applications: car parks, garages, service stations, areas requiring hydrocarbon separation (depending on configuration and size)
