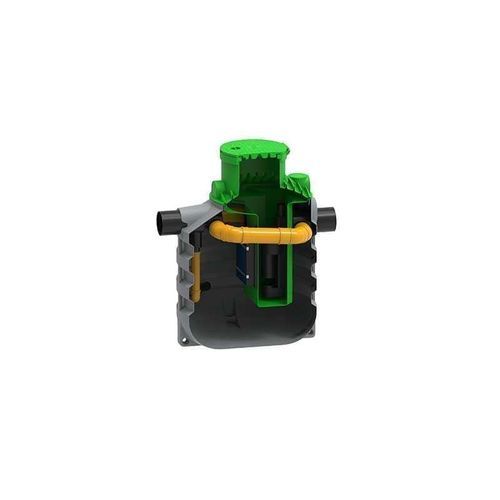

Polyethylene oil separator ROOIL

Overview
These separators are designed for situations where complete treatment cannot be ensured at high flow rates, for example a major spill coinciding with heavy rainfall. Polyethylene construction for extended service life, vertical compact design for easy handling, installation and maintenance. User-friendly bypass connections accept different pipe diameters. Oil residues and sludge can be removed quickly and efficiently.

Dimension table
Volume [L] | Code | Dimensions A x B x C [mm] | Flow | Pipe diameter [mm]
1.500 | 7300768820 | Ø1300 x 1750 | 15/1,5 | DN 200
1.700 | 7300768900 | Ø1300 x 2000 | 30/3 | DN 200
2.700 | 7300768970 | Ø1500 x 2400 | 50/5 | DN 250
3.200 | 7300768980 | Ø1800 x 2000 | 80/8 | DN 315
4.000 | 7300768920 | Ø1800 x 2350 | 100/10 | DN 315
6.000 | 7300768930 | Ø2300 x 2350 | 150/15 | DN 400
7.500 | 7300768940 | Ø2300 x 2700 | 200/20 | DN 400

Available variants (examples)

• NS 15 / 1,5 (1 500 L)
• NS 30 / 3 (1 700 L)
• NS 50 / 5 (2 700 L)
• NS 80 / 8 (3 200 L)
• NS 100 / 10 (4 000 L)
• NS 150 / 15 (6 000 L)
• NS 200 / 20 (7 500 L)

Features / technical specifications

• Use: hydrocarbon separator with 10% bypass for high flows (heavy rain, major spills).
• Construction: polyethylene body designed for long service life.
• Design: vertical, compact layout for simplified handling, installation and maintenance.
• Connections: bypass connections compatible with several pipe diameters.
• Maintenance: oil residues and sludge are removed easily and rapidly.
• Volume/size range: from 1 500 L to 7 500 L (see dimension table for volume ↔ code ↔ dimensions correspondence).
• Flow/capacity coding: models coded (e.g. 15/1,5 ; 30/3 ; 50/5 ; 80/8 ; 100/10 ; 150/15 ; 200/20) corresponding to throughput capacities.
• Typical inlet/outlet diameters: DN 200, DN 250, DN 315, DN 400 depending on model.
