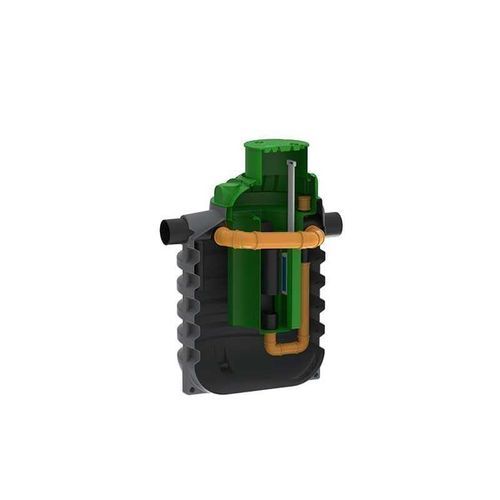

Polyethylene (PE) oil separator ROOIL

Description
These separators are intended for applications where full treatment cannot be guaranteed at very high flow rates, for example during a major spill combined with heavy rainfall.
Polyethylene construction for extended service life. Vertical compact design to facilitate handling, installation and maintenance.
Bypass connections adapted for contractors to match different pipe diameters. Oil residues and sludge are removed quickly and simply.

Available variants

• NS 15/3
• NS 30/6
• NS 40/8
• NS 50/10
• NS 75/15
• NS 100/20
• NS 150/30
• NS 200/40

Dimensions table
Volume [L] | Code | Dimensions A x B x C [mm] | Flow designation | Pipe diameter [mm] | Plan | Technical sheet | Render | Inquiry reference
1.500 | 7300768800 | Ø1300 x 2000 | 15/3 | DN 200 | RoOIL NS 15_3.pdf | 7300768800 RoOil-NS15-3 Technical Sheet - FR.pdf | RoOIL NS 15_3.jpg | RooilBP20-1500L (réf. 7300768800)
1.700 | 7300768810 | Ø1300 x 2000 | 30/6 | DN 200 | RoOIL NS 30_6.pdf | 7300768810 RoOil-NS30-6 Technical Sheet - FR.pdf | RoOIL NS 30_6.jpg | RooilBP20-1700L (réf. 7300768810)
2.350 | 7300768960 | Ø1500 x 2150 | 40/8 | DN 250 | RoOIL NS 40_8.pdf | 7300768960 RoOil-NS40-8 Technical Sheet - FR.pdf | RoOIL NS 40_8.jpg | RooilBP20-2350L (réf. 7300768960)
2.700 | 7300768500 | Ø1500 x 2420 | 50/10 | DN 250 | RoOIL NS 50_10.pdf | 7300768500 RoOil-NS50-10 Technical Sheet - FR.pdf | RoOIL NS 50_10.jpg | RooilBP20-2700L (réf. 7300768500)
4.100 | 7300768880 | Ø1800 x 2500 | 75/15 | DN 315 | RoOIL NS 75_15.pdf | 7300768880 RoOil-NS75-15 Technical Sheet - FR.pdf | RoOIL NS 75_15.jpg | RooilBP20-4100L (réf. 7300768880)
6.000 | 7300768840 | Ø2300 x 2350 | 100/20 | DN 315 | RoOIL NS 100_20.pdf | 7300768840 RoOil-NS100-20 Technical Sheet - FR.pdf | RoOIL NS 100_20.jpg | RooilBP20-6000L (réf. 7300768840)
7.500 | 7300768520 | Ø2300 x 2690 | 150/30 | DN 400 | RoOIL NS 150_30.pdf | 7300768520 RoOil-NS150-30 Technical Sheet - FR.pdf | RoOIL NS 150_30.jpg | RooilBP20-7500L (réf. 7300768520)
8.700 | 7300768530 | Ø2300 x 3060 | 200/40 | DN 400 | RoOIL NS 200_40.pdf | 7300768530 RoOil-NS200-40 Technical Sheet - FR.pdf | RoOIL NS 200_40.jpg | RooilBP20-8700L (réf. 7300768530)

Technical characteristics / specifications

• Material: polyethylene (designed for extended service life)
• Bypass: 20% (Rooil bypass design for high-flow events)
• Design: vertical compact for ease of handling, installation and maintenance
• Bypass connections: adapted for different pipe diameters (available DN 200 / 250 / 315 / 400 depending on model)
• Rapid and simple removal of oil residues and sludge
• Available volumes: 1,500 L to 8,700 L (model-dependent)
• Variants and product codes: NS 15/3 to NS 200/40 (see table above)
• Documentation available: plans and technical sheets (PDF) and render images per variant
