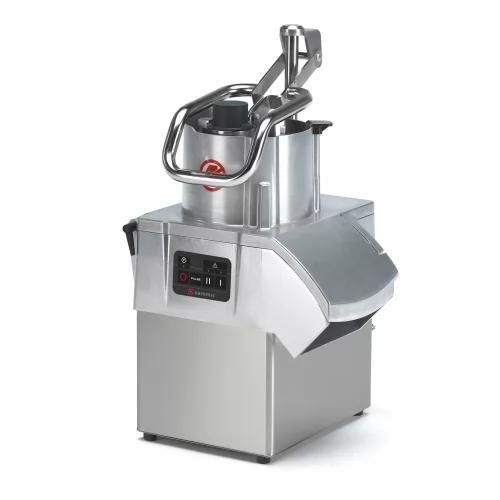

Industrial vegetable cutter CA-42

for the food industryfor commercial kitchencommercial

Overview
High-production vegetable preparation machine with an hourly output of up to 850 kg / 1875 lb. 2-speed appliance with a 2-speed motor block and a large-capacity head. Designed for continuous use in professional kitchens and food-processing environments.

Benefits

• Wide variety of cuts: More than 70 cut and grating types by combining discs and grids.
• Handles whole products: Large-capacity hopper with high ejector for processing whole vegetables.
• Ergonomic operation: Cutting performed in a single movement to maximize throughput and reduce operator fatigue.
• Lateral product ejection: Saves bench depth, directs product flow and reduces splashing.
• Two-speed operation: Allows precision and control for different products and cuts.

A perfect cut

• High-precision adjustments deliver uniform, high-quality cuts.
• Compatible with a broad range of high-quality discs and grids; combinations enable over 70 different cuts and grating grades.
• Head with side blade distributes products into the inlet and cuts whole items such as cabbage.
• Head fitted with high ejector to process larger quantities efficiently.

Built to last

• Constructed in stainless steel and food-grade materials: stainless-steel motor block and food-grade aluminium head.
• High-power asynchronous motor for continuous operation.

Maximum comfort for the user

• Ergonomic design for reduced operator fatigue and efficient single-motion cutting.
• Lateral product output reduces required bench depth and prevents splashes.
• Intuitive electronic control panel for easy operation.

Maintenance, safety, hygiene

• Press and lid easily removable for cleaning.
• Multiple safety systems combined: head, cover, power cut-off.
• Appliance certified by NSF International (hygiene, cleaning and materials suitable for food contact).
• 100% factory tested.

Equipment
Included

• 2-speed motor block.
• Large-capacity hopper with high ejector.
• Core drill (optional use).
• Universal grid cleaner QC-U.

Optional

• Tube head for long products.
• High-production semi-automatic hopper.
• Support trolley.
• Discs and grids (various models).
• Grid cleaning kit.

Technical specifications

• Hourly production: 200 kg - 850 kg
• Inlet opening: 286 cm²
• Disc diameter: 205 mm
• Motor speed: 365 - 730 rpm
• Power: 750 W (three-phase)
• Noise level (1 m): <70 dB(A)
• Background noise: 32 dB(A)
• External dimensions (W x D x H): 391 x 396 x 652 mm
• Net weight: 24 kg
• Crated dimensions: 440 x 430 x 700 mm
• Volume packed: 0.13 m³
• Gross weight: 28.5 / 29 kg
