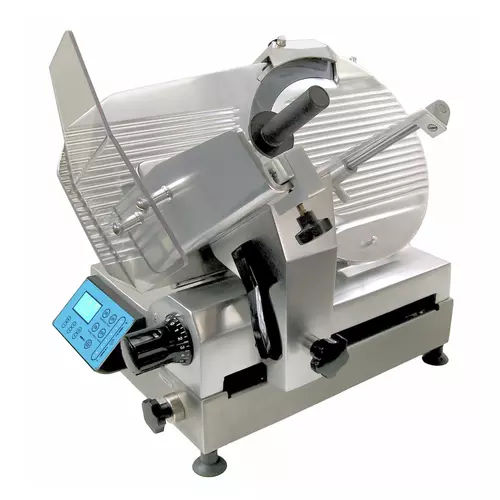

Automatic slicer GAE-300

for cateringfor the food industryprofessional

Overview
Gear-driven automatic deli slicer GAE-300 with 300 mm blade and slice counter. Designed for professional food-processing and catering environments. Two independent motors for blade and carriage ensure stable performance and adjustable carriage run for varied product sizes.

Key features

• Blade Ø 300 mm; components in high-polished aluminium protected against anodic oxidation for hygienic, corrosion-resistant surfaces.
• Professional safety ring, carriage lock and blade removal tool for maintenance and safe operation.
• Two independent motors for blade and carriage; heavy-duty ventilated motor design.
• Adjustable carriage run to adapt to square, round or rectangular products.
• Built-in slice counter and built-in precision sharpener (non-removable).
• Decimal adjustment of cutting thickness; carriage mounted on life-lubricated bearings for long service life.
• Easy to clean and maintain.

Specifications table
Blade diameter: 300 mm
Cutting capacity — Square cut: 190 mm x 190 mm
Cutting capacity — Round cut: 215 mm
Cutting capacity — Rectangular cut: 250 mm x 190 mm
Slice thickness: 0 mm - 14 mm
Blade speed: 270 rpm
Slices per minute: 36-106
Carriage run: 310 mm
Total loading: 400 W
IP protection grade: 40
External dimensions (W x D x H): 690 x 540 x 600 mm
Net weight: 50 kg
Crated dimensions: 740 x 680 x 570 mm
Gross weight: 56 kg

Technical specifications

• Model: GAE-300
• Type: Gear-driven automatic deli slicer
• Blade diameter: 300 mm
• Cutting capacities: square 190 x 190 mm; round 215 mm; rectangular 250 x 190 mm
• Slice thickness range: 0 - 14 mm (decimal adjustment)
• Blade speed: 270 rpm
• Production: 36 - 106 slices/min
• Carriage run: 310 mm (adjustable)
• Motors: two independent motors (blade and carriage), total 400 W
• IP protection: IP40
• Construction material: high-polished anodized aluminium alloy
• Maintenance features: built-in sharpener (non-removable), blade removal tool, carriage on self-lubricating bearings
• Dimensions (W x D x H): 690 x 540 x 600 mm
• Net weight: 50 kg; Gross weight: 56 kg
