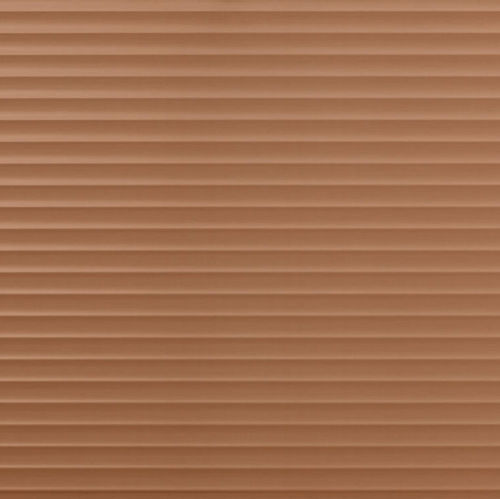

Ceiling decorative panel SL PILLAR COPPER BRUSHED AR

wall-mountedwallpolystyrene

SL PILLAR Copper brushed AR is a decorative design panel from the STRUCTURE-LINE collection, featuring a brushed copper surface with wide vertically running lines. The varying heights and depths of the structure create a particularly deep and impressive three-dimensional effect, making it an eye-catcher for furniture and wall applications. The harmonious colors and unique designs of STRUCTURE-LINE panels provide both visual and haptic experiences, suitable for a variety of interior design concepts.

Colour Variants

• SL PILLAR Copper brushed AR
• SL PILLAR Fashion Gold AR
• SL PILLAR Aqua
• SL PILLAR Hollywood Blue
• SL FACET Green Steel brushed AR
• SL PILLAR Silver

Panel Photo

• Detailed images and panel photos available for visual reference.

Product Characteristics

• Available in non-adhesive (NA) and self-adhesive (SA) versions
• Item numbers: NA - 30952, SA - 30956
• Format: NA - 2600x1000x3.5 mm, SA - 2600x1000x3.8 mm
• Surface material: PET (Polyethylene terephthalate)
• Base material: HIPS (High impact polystyrene)
• Back side material: NA - none, SA - Adhesive Layer
• Material thickness: NA - 2 mm, SA - 2.3 mm
• Max. relief height: NA - 3.5 mm, SA - 3.8 mm
• Temperature stability: up to 50°C
• Wet room suitability: Limited suitability - remove splash water
• Abrasion resistance: Excellent
• Rolled packable: NA - Yes (rolled with decor side outwardly, max. 2 pcs/box), SA - Not applicable
• Smallest bending radius: 1000 mm
• Weight per piece: NA - 5.6 kg, SA - 6.2 kg
• Pattern gradient: Please consider the design course
• Flammability: EN 13501-1 (E)
• Machine-related dimensional and angle tolerances: +/- 2.0 mm in relation to 1,000 mm
• Temperature-related dimensional deviations: +/- 0.7 mm to 1,000 mm at temperature change of 10°C
• Protection foil: Delivered with a protective film
• GTIN-Code: NA - 9002582309527, SA - 9002582309565
• Customs tariff number: NA - 39219090, SA - 39199080

Processing

• Cutting: Yes
• Punching: Not possible
• Drilling: Yes
• Sawing: NA - Yes, SA - Not possible
• Milling: NA - Yes, SA - Not possible
• Laser cutting: Yes
• Hot bending: NA - Yes (only outer corner possible by heating reverse side), SA - Not possible
• PVA compressible: NA - Conditionally possible, SA - Not possible
• Digital printing: On request
• Screen printing: Not possible due to structure

Extra Equipment

• Special formats: Not available
• Further thicknesses: Not available
• Cuttings: Available
• Magnetic available: Not available
• PVA treatment orderable: NA - Yes (please specify when ordering), SA - Not available
• Special colors: Available
• Further variants: DECO-LINE
• EN13501-1 Flammability orderable: Yes
• ASTM E84 Flammability orderable: Yes

Accessories

• Glue recommendation: NA - Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartridge), SA - Not necessary
• Matching Edges: Not available
• Matching Profiles: Not available

Cleaning

• Do not use abrasive cleaners, solvent cleaners, or pure alcohol
• For light dirt: use a soft, dust-free cleaning cloth
• For heavy dirt: use standard plastic or window cleaner (apply cleaner to cloth, not directly to surface)

Additional Info

• Due to the pattern, mechanical assembly (screws, spacers) is generally recommended
• Applications in the ceiling area must be attached mechanically

Downloads

• SL PILLAR – brushed & mirror (DE/EN)
• Processing information SL OCEAN, SL PILLAR, SL FACET, SL DIAMOND, SL TARGET (EN/DE)

Characteristics / Technical Specifications

• Product line: STRUCTURE-LINE
• Model: SL PILLAR Copper brushed AR
• Surface: Brushed copper, linear pattern
• Dimensions: 2600x1000 mm
• Thickness: NA - 2 mm, SA - 2.3 mm
• Max. relief height: NA - 3.5 mm, SA - 3.8 mm
• Material: PET surface, HIPS base
• Weight: NA - 5.6 kg, SA - 6.2 kg
• Temperature stability: up to 50°C
• Wet room suitability: Limited
• Abrasion resistance: Excellent
• Flammability: EN 13501-1 (E)
• GTIN (EAN): NA - 9002582309527, SA - 9002582309565
