Ceiling decorative panel SL DIAMOND Green Steel brushed AR

for interiorwallpolystyrene

SL DIAMOND Green Steel brushed AR is a decorative design panel from the STRUCTURE-LINE series, featuring a diamond-like structure with a steel-colored, brushed surface. This panel is designed to add a three-dimensional effect and visual appeal to furniture and walls, making every surface an eye-catcher. The harmonious colors and unique designs of STRUCTURE-LINE panels provide a special visual and tactile experience, whether in rattan, wood, or concrete look.

Colour Variants

• SL DIAMOND Green Steel brushed AR
• SL DIAMOND Anthracite AR
• SL DIAMOND Gold
• SL DIAMOND Silver
• SL DIAMOND Copper brushed AR

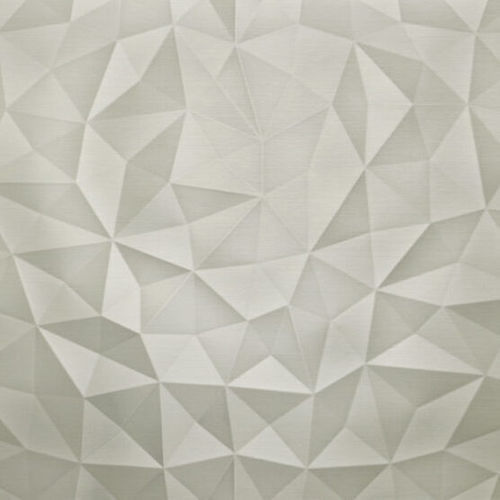

Panel Photo

• Detailed images and close-ups available, showing the diamond structure and brushed finish.

Product Characteristics

• Available as non-adhesive (NA) and self-adhesive (SA) versions
• Item numbers: 31018 (NA), 31020 (SA)
• Format: 2600x1000x3.5 mm (NA), 2600x1000x3.8 mm (SA)
• Surface material: PET (Polyethylene terephthalate)
• Base material: HIPS (High impact polystyrene)
• Back side material: None (NA), Adhesive Layer (SA)
• Material thickness: 2 mm (NA), 2.3 mm (SA)
• Max. relief height: 3.5 mm (NA), 3.8 mm (SA)
• Temperature stability: up to 50 °C
• Wet room suitability: Limited suitability - remove splash water
• Abrasion resistance: Excellent abrasion resistance
• Rolled packable: Yes (NA, rolled with decor side outwardly, max. 2 pcs/box)
• Smallest bending radius: 1000 mm
• Weight per piece: 5.6 kg (NA), 6.2 kg (SA)
• Pattern gradient: Please consider the design course
• Flammability: EN 13501-1 (E)
• Machine-related dimensional and angle tolerances: +/- 2.0 mm in relation to 1,000 mm
• Temperature-related dimensional deviations: +/- 0.7 mm to 1,000 mm at temperature change of 10°C
• Protection foil: Product is delivered with a protective film
• GTIN-Code: 9002582310189 (NA), 9002582310202 (SA)
• Customs tariff number: 39219090 (NA), 39199080 (SA)

Processing

• Cutting: Possible
• Punching: Not possible
• Drilling: Possible
• Sawing: Possible (NA), Not possible (SA)
• Milling: Possible (NA), Not possible (SA)
• Laser cutting: Possible
• Hot bending: Possible (NA, only outer corner by heating reverse side)
• PVA compressible: Conditionally possible (NA)
• Digital printing: On request
• Screen printing: Not possible due to structure

Extra Equipment

• Special formats: Not available
• Further thicknesses: Not available
• Cuttings: Available
• Magnetic available: Not available
• PVA treatment orderable: Available (NA)
• Special colors: Available
• Further variants: DECO-LINE
• EN13501-1 Flammability orderable: Available
• ASTM E84 Flammability orderable: Available

Accessories

• Glue recommendation: Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartridge) for NA; not necessary for SA
• Matching edges: Not available
• Matching profiles: Not available

Cleaning

• Do not use abrasive cleaners, solvent cleaners, or pure alcohol
• For light dirt: use a soft, dust-free cleaning cloth
• For heavy dirt: use standard plastic or window cleaner (spray onto cloth, not directly onto surface)

Additional Info

• Due to the pattern, mechanical assembly (screws, spacers) is generally recommended
• Applications in the ceiling area must be attached mechanically

Technical Specifications

• Product line: STRUCTURE-LINE
• Model: SL DIAMOND Green Steel brushed AR
• Surface: Brushed, diamond-like structure
• Color: Green Steel
• Material: PET surface, HIPS base
• Dimensions: 2600x1000 mm
• Thickness: 2 mm (NA), 2.3 mm (SA)
• Max. relief height: 3.5 mm (NA), 3.8 mm (SA)
• Weight: 5.6 kg (NA), 6.2 kg (SA)
• GTIN/EAN: 9002582310189 (NA), 9002582310202 (SA)
