Ceiling decorative panel SL PILLAR Silver

for interiorwall-mountedwall

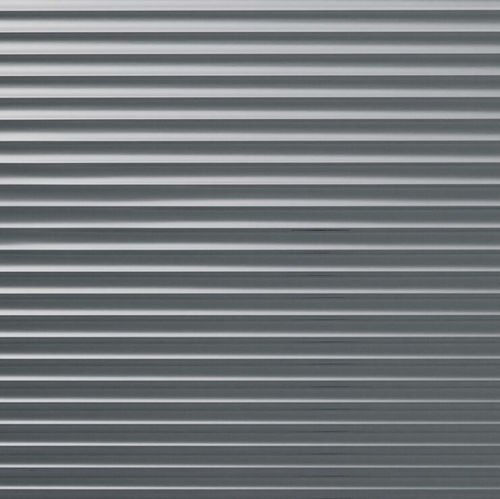

SL PILLAR Silver is a decorative design panel from the STRUCTURE-LINE collection, characterized by wide vertically running lines and a reflective silver surface. The varying heights and depths of the structure create a particularly deep and captivating effect, making it an eye-catcher for furniture and wall applications. The harmonious colours and unique designs of STRUCTURE-LINE panels provide a special kind of visual and haptic experience, whether in rattan, wood, or concrete look.

Colour Variants

• SL PILLAR Silver
• SL PILLAR Aqua
• SL PILLAR Hollywood Blue
• SL PILLAR Fashion Gold AR
• SL PILLAR Copper brushed AR

Panel Photo

• Detailed images available showing the linear, reflective silver design.

Product Characteristics

• Available as non-adhesive (NA) and self-adhesive (SA) versions
• Item number: NA - 30950, SA - 30954
• Format: NA - 2600x1000x3.5 mm, SA - 2600x1000x3.8 mm
• Surface material: PET (Polyethylene terephthalate)
• Base material: HIPS (High impact polystyrene)
• Back side material: NA - none, SA - Adhesive Layer
• Material thickness: NA - 2 mm, SA - 2.3 mm
• Max. relief height: NA - 3.5 mm, SA - 3.8 mm
• Temperature stability: up to 50 °C
• Wet room suitability: limited suitability - remove splash water
• Abrasion resistance: normal abrasion resistance
• Rolled packable: NA - yes (rolled with decor side outwardly, max. 2 pcs/box), SA - not applicable
• Smallest bending radius: 1000 mm
• Weight per piece: NA - 5.6 kg, SA - 6.2 kg
• Pattern gradient: Please consider the design course
• Flammability: EN 13501-1 (E)
• Machine-related dimensional and angle tolerances: +/- 2.0 mm in relation to 1,000 mm
• Temperature-related dimensional deviations: +/- 0.7 mm to 1,000 mm at temperature change of 10°C
• Protection foil: Product is delivered with a protective film
• GTIN-Code: NA - 9002582309503, SA - 9002582309541
• Customs tariff number: NA - 39219090, SA - 39199080

Processing

• Cutting: possible
• Punching: not possible
• Drilling: possible
• Sawing: NA - possible, SA - not possible
• Milling: NA - possible, SA - not possible
• Laser cutting: possible
• Hot bending: NA - possible (only outer corner by heating the reverse side), SA - not possible
• PVA compressible: NA - conditionally possible, SA - not possible
• Digital printing: on request
• Screen printing: not possible due to structure

Extra Equipment

• Special formats: not available
• Further thicknesses: not available
• Cuttings: available
• Magnetic available: not available
• PVA treatment orderable: NA - available (please specify when ordering), SA - not available
• Special colors: available
• Further variants: DECO-LINE
• EN13501-1 Flammability orderable: available
• ASTM E84 Flammability orderable: available

Accessories

• Glue recommendation: NA - Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartridge), SA - not necessary
• Matching Edges: NA - on request, SA - not available
• Matching Profiles: not available

Cleaning

• Do not use abrasive cleaners, solvent cleaners or pure alcohol
• For light dirt: use a soft, dust-free cleaning cloth
• For heavy dirt: use standard plastic or window cleaner (spray cleaner onto the cloth, not directly onto the surface)

Additional Info

• Due to the pattern, mechanical assembly (screws, spacers) is generally recommended
• Applications in the ceiling area must be attached mechanically

Technical Specifications

• Product line: STRUCTURE-LINE
• Model: SL PILLAR Silver
• Surface: Reflective silver, wide vertical lines, deep relief structure
• Material: PET surface, HIPS base
• Dimensions: 2600x1000 mm
• Thickness: NA - 2 mm, SA - 2.3 mm
• Max. relief height: NA - 3.5 mm, SA - 3.8 mm
• Weight: NA - 5.6 kg, SA - 6.2 kg
• Temperature stability: up to 50 °C
• Wet room suitability: limited
• Abrasion resistance: normal
• Flammability: EN 13501-1 (E)
• GTIN (EAN): NA - 9002582309503, SA - 9002582309541
