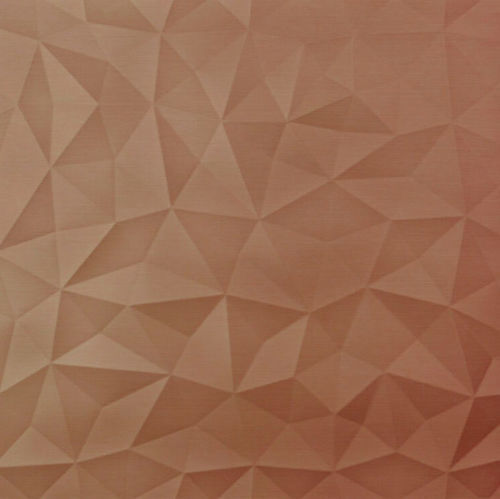

Ceiling decorative panel SL DIAMOND Copper brushed AR

for interiorwall-mountedwall

SL DIAMOND Copper brushed AR is a decorative design panel from the STRUCTURE-LINE collection, featuring a diamond-like structure with a brushed copper finish. This panel is designed to create striking three-dimensional effects and is suitable for both furniture and wall applications, offering a unique visual and tactile experience.

STRUCTURE-LINE Collection

• STRUCTURE-LINE panels are known for their harmonious colors and unique designs, making every surface an eye-catcher and unleashing three-dimensional effects.
• Available in various looks such as rattan, wood, or concrete, these panels provide a special kind of visual and haptic experience.

Colour Variants

• SL DIAMOND Copper brushed AR
• SL DIAMOND Green Steel brushed AR
• SL DIAMOND Anthracite AR
• SL DIAMOND Gold
• SL DIAMOND Silver

Product Characteristics

• Available in non-adhesive (NA) and self-adhesive (SA) versions.
• Item numbers: 30944 (NA), 30947 (SA)
• Format: 2600x1000x3.5 mm (NA), 2600x1000x3.8 mm (SA)
• Surface material: PET (Polyethylene terephthalate)
• Base material: HIPS (High impact polystyrene)
• Back side material: None (NA), Adhesive Layer (SA)
• Material thickness: 2 mm (NA), 2.3 mm (SA)
• Max. relief height: 3.5 mm (NA), 3.8 mm (SA)
• Temperature stability: up to 50°C
• Wet room suitability: Limited suitability - remove splash water
• Abrasion resistance: Excellent
• Rolled packable: Yes (NA only, max. 2 pcs/box, decor side outwardly)
• Smallest bending radius: 1000 mm
• Weight per piece: 5.6 kg (NA), 6.2 kg (SA)
• Pattern gradient: Please consider the design course
• Flammability: EN 13501-1 (E)
• Machine-related dimensional and angle tolerances: +/- 2.0 mm in relation to 1,000 mm
• Temperature-related dimensional deviations: +/- 0.7 mm to 1,000 mm at temperature change of 10°C
• Protection foil: Delivered with a protective film
• GTIN-Code: 9002582309442 (NA), 9002582309473 (SA)
• Customs tariff number: 39219090 (NA), 39199080 (SA)

Processing

• Cutting: Possible
• Punching: Not possible
• Drilling: Possible
• Sawing: Possible (NA only)
• Milling: Possible (NA only)
• Laser cutting: Possible
• Hot bending: Possible (NA only, only outer corner possible by heating the reverse side)
• PVA compressible: Conditionally possible (NA only)
• Digital printing: On request
• Screen printing: Not possible due to structure

Extra Equipment

• Special formats: Not available
• Further thicknesses: Not available
• Cuttings: Available
• Magnetic available: Not available
• PVA treatment orderable: Available (NA only, please specify when ordering)
• Special colors: Available
• Further variants: DECO-LINE
• EN13501-1 Flammability orderable: Available
• ASTM E84 Flammability orderable: Available

Accessories

• Glue recommendation: Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartridge) for NA; not necessary for SA
• Matching Edges: Not available
• Matching Profiles: Not available

Cleaning

• Do not use abrasive cleaners, solvent cleaners, or pure alcohol.
• For light dirt: use a soft, dust-free cleaning cloth.
• For heavy dirt: use standard plastic or window cleaner (spray onto the cloth, not directly onto the surface).

Additional Info

• Due to the pattern, mechanical assembly (screws, spacers) is generally recommended.
• Applications in the ceiling area must be attached mechanically.

Characteristics / Technical Specifications

• Product: SL DIAMOND Copper brushed AR
• Collection: STRUCTURE-LINE
• Item numbers: 30944 (NA), 30947 (SA)
• Format: 2600x1000x3.5 mm (NA), 2600x1000x3.8 mm (SA)
• Surface material: PET
• Base material: HIPS
• Back side material: None (NA), Adhesive Layer (SA)
• Material thickness: 2 mm (NA), 2.3 mm (SA)
• Max. relief height: 3.5 mm (NA), 3.8 mm (SA)
• Temperature stability: up to 50°C
• Wet room suitability: Limited
• Abrasion resistance: Excellent
• Rolled packable: Yes (NA only)
• Smallest bending radius: 1000 mm
• Weight per piece: 5.6 kg (NA), 6.2 kg (SA)
• Pattern gradient: Consider design course
• Flammability: EN 13501-1 (E)
