Ceiling decorative panel SL DIAMOND SILVER

for interiorwallpolystyrene

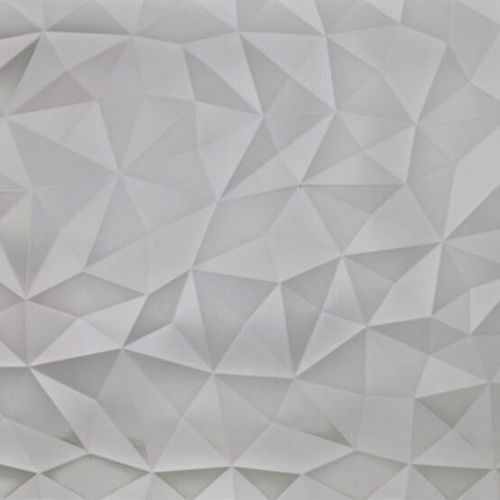

SL DIAMOND Silver is a decorative design panel from the STRUCTURE-LINE collection, featuring a diamond-like structure with a glossy, reflective silver surface. This panel is designed to add a three-dimensional effect and visual appeal to furniture and walls, making every surface an eye-catcher. The harmonious colors and unique designs of STRUCTURE-LINE panels provide both visual and tactile experiences, suitable for a variety of applications including rattan, wood, or concrete looks.

Colour Variants

• SL DIAMOND Silver
• SL DIAMOND Anthracite AR
• SL DIAMOND Copper brushed AR
• SL DIAMOND Gold
• SL DIAMOND Green Steel brushed AR

Panel Photo

• Detailed images and panel photos available for visual reference.

Product Characteristics

• Available in non-adhesive (NA) and self-adhesive (SA) versions
• Item numbers: NA - 30942, SA - 30949
• Format: NA - 2600x1000x3.5 mm, SA - 2600x1000x3.8 mm
• Surface material: PET (Polyethylene terephthalate)
• Base material: HIPS (High impact polystyrene)
• Back side material: NA - none, SA - Adhesive Layer
• Material thickness: NA - 2 mm, SA - 2.3 mm
• Max. relief height: NA - 3.5 mm, SA - 3.8 mm
• Temperature stability: up to 50°C
• Wet room suitability: limited suitability - remove splash water
• Abrasion resistance: normal abrasion resistance
• Rolled packable: NA - yes (rolled with decor side outwardly, max. 2 pcs/box), SA - not applicable
• Smallest bending radius: 1000 mm
• Weight per piece: NA - 5.6 kg, SA - 6.2 kg
• Pattern gradient: Please consider the design course
• Flammability: EN 13501-1 (E)
• Machine-related dimensional and angle tolerances: +/- 2.0 mm in relation to 1,000 mm
• Temperature-related dimensional deviations: +/- 0.7 mm to 1,000 mm at temperature change of 10°C
• Protection foil: Product is delivered with a protective film
• GTIN-Code: NA - 9002582309428, SA - 9002582309497
• Customs tariff number: NA - 39219090, SA - 39199080

Processing

• Cutting: possible
• Punching: not possible
• Drilling: possible
• Sawing: NA - possible, SA - not possible
• Milling: NA - possible, SA - not possible
• Laser cutting: possible
• Hot bending: NA - possible (outer corner only, decor outside, by heating the reverse side), SA - not possible
• PVA compressible: NA - conditionally possible, SA - not possible
• Digital printing: on request
• Screen printing: not possible due to structure

Extra Equipment

• Special formats: not available
• Further thicknesses: not available
• Cuttings: available
• Magnetic available: not available
• PVA treatment orderable: NA - available on request, SA - not available
• Special colors: available
• Further variants: DECO-LINE
• EN13501-1 Flammability orderable: available
• ASTM E84 Flammability orderable: available

Accessories

• Glue recommendation: NA - Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartridge), SA - not necessary
• Matching Edges: not available
• Matching Profiles: not available

Cleaning

• Do not use abrasive cleaners, solvent cleaners or pure alcohol
• For light dirt: use a soft, dust-free cleaning cloth
• For heavy dirt: use standard plastic or window cleaner (spray cleaner onto the cloth, not directly onto the surface)

Additional Info

• Due to the pattern, mechanical assembly (screws, spacers) is generally recommended
• Applications in the ceiling area must be attached mechanically

Downloads

• SL DIAMOND – brushed & mirror (DE/EN)
• Processing information SL OCEAN, SL PILLAR, SL FACET, SL DIAMOND, SL TARGET (EN/DE)

Characteristics / Technical Specifications

• Product line: STRUCTURE-LINE
• Model: SL DIAMOND Silver
• Surface: Glossy, reflective, diamond-like structure
• Color: Silver
• Material: PET surface, HIPS base
• Thickness: 2 mm (NA), 2.3 mm (SA)
• Format: 2600x1000 mm
• Max. relief height: 3.5 mm (NA), 3.8 mm (SA)
• Weight: 5.6 kg (NA), 6.2 kg (SA)
• Temperature stability: up to 50°C
• Wet room suitability: limited
• Abrasion resistance: normal
• Flammability: EN 13501-1 (E)
• GTIN/EAN: 9002582309428 (NA), 9002582309497 (SA)
