Ceiling decorative panel SL DIAMOND Gold

for interiorwall-mountedwall

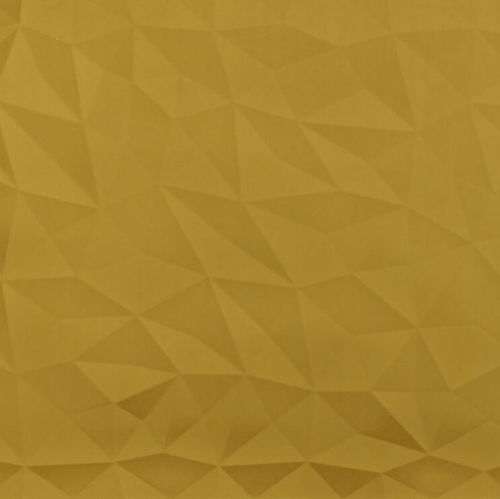

SL DIAMOND Gold is a decorative design panel from the STRUCTURE-LINE collection, featuring a diamond-like structure with a glossy, reflective gold surface. This panel is designed to bring more structure to furniture and walls, offering harmonious colors and unique three-dimensional effects that make every surface an eye-catcher. The STRUCTURE-LINE panels provide a special visual and haptic experience, whether in rattan, wood, or concrete look.

Colour Variants

• SL DIAMOND Gold
• SL DIAMOND Copper brushed AR
• SL DIAMOND Anthracite AR
• SL DIAMOND Silver
• SL DIAMOND Green Steel brushed AR

Product Characteristics

• Available in non-adhesive (NA) and self-adhesive (SA) versions
• Item numbers: 31019 (NA), 31022 (SA)
• Format: 2600x1000x3.5 mm (NA), 2600x1000x3.8 mm (SA)
• Surface material: PET (Polyethylene terephthalate)
• Base material: HIPS (High impact polystyrene)
• Back side material: NA - none; SA - Adhesive Layer
• Material thickness: 2 mm (NA), 2.3 mm (SA)
• Max. relief height: 3.5 mm (NA), 3.8 mm (SA)
• Temperature stability: up to 50°C
• Wet room suitability: limited suitability - remove splash water
• Abrasion resistance: low abrasion resistance
• Rolled packable: NA - yes (rolled with decor side outwardly, max. 2 pcs/box); SA - not applicable
• Smallest bending radius: 1000 mm
• Weight per piece: 5.6 kg (NA), 6.2 kg (SA)
• Pattern gradient: Please consider the design course
• Flammability: EN 13501-1 (E)
• Machine-related dimensional and angle tolerances: +/- 2.0 mm in relation to 1,000 mm
• Temperature-related dimensional deviations: +/- 0.7 mm to 1,000 mm at temperature change of 10°C
• Protection foil: Product is delivered with a protective film
• GTIN-Code: 9002582310196 (NA), 9002582310226 (SA)
• Customs tariff number: 39219090 (NA), 39199080 (SA)

Processing

• Cutting: possible
• Punching: not possible
• Drilling: possible
• Sawing: possible (NA), not possible (SA)
• Milling: possible (NA), not possible (SA)
• Laser cutting: possible
• Hot bending: possible (NA, only outer corner by heating reverse side, approx. 200°C, 30-40 seconds), not possible (SA)
• PVA compressible: conditionally possible (NA), not possible (SA)
• Digital printing: on request
• Screen printing: not possible due to structure

Extra Equipment

• Special formats: not available
• Further thicknesses: not available
• Cuttings: available
• Magnetic available: not available
• PVA treatment orderable: available (NA), not available (SA)
• Special colors: available
• Further variants: DECO-LINE
• EN13501-1 Flammability orderable: available
• ASTM E84 Flammability orderable: available

Accessories

• Glue recommendation: Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartridge) for NA; not necessary for SA
• Matching Edges: not available
• Matching Profiles: not available

Cleaning

• Do not use abrasive cleaners, solvent cleaners, or pure alcohol
• For light dirt: use a soft, dust-free cleaning cloth
• For heavy dirt: use standard plastic or window cleaner (spray cleaner onto the cloth, not directly onto the surface)

Additional Info

• Due to the pattern, mechanical assembly (screws, spacers) is generally recommended
• Applications in the ceiling area must be attached mechanically

Characteristics / Technical Specifications

• Product line: STRUCTURE-LINE
• Model: SL DIAMOND Gold
• Surface: Glossy, reflective, diamond-like structure
• Color: Gold
• Material: PET surface, HIPS base
• Dimensions: 2600x1000x3.5 mm (NA), 2600x1000x3.8 mm (SA)
• Thickness: 2 mm (NA), 2.3 mm (SA)
• Weight: 5.6 kg (NA), 6.2 kg (SA)
• GTIN/EAN: 9002582310196 (NA), 9002582310226 (SA)
• Temperature stability: up to 50°C
• Flammability: EN 13501-1 (E)
• Wet room suitability: limited
• Abrasion resistance: low
• Protection foil: included
