Ceiling decorative panel SL FACET RED BROWN AR

for interiorwall-mountedwall

SL FACET Red Brown AR is a decorative design panel from the STRUCTURE-LINE collection, featuring a red-brownish color and a glossy, reflective surface with a structure reminiscent of a hammer blow. This panel is designed to bring more structure to furniture and walls, offering harmonious colors and unique designs that create eye-catching, three-dimensional effects. Suitable for a variety of looks including rattan, wood, or concrete, these panels provide a special visual and tactile experience.

Product characteristics

• Available in non-adhesive (NA) and self-adhesive (SA) versions
• Item numbers: NA - 31015, SA - 31016
• Format: NA - 2600x1000x3.5 mm, SA - 2600x100x3.8 mm
• Surface material: PET (Polyethylene terephthalate)
• Base material: HIPS (High impact polystyrene)
• Back side material: NA - none, SA - Adhesive Layer
• Material thickness: NA - 2 mm, SA - 2.3 mm
• Max. relief height: NA - 3.5 mm, SA - 3.8 mm
• Temperature stability: up to 50°C
• Wet room suitability: limited suitability (remove splash water)
• Abrasion resistance: excellent
• Rolled packable: NA - yes (rolled with decor side outwardly, max. 2 pcs/box), SA - not applicable
• Smallest bending radius: 1000 mm
• Weight per piece: NA - 5.6 kg, SA - 6.2 kg
• Pattern gradient: No design course
• Flammability: EN 13501-1 (E)
• Machine-related dimensional and angle tolerances: +/- 2.0 mm in relation to 1,000 mm
• Temperature-related dimensional deviations: +/- 0.7 mm to 1,000 mm at temperature change of 10°C
• Protection foil: delivered with a protective film
• GTIN-Code: NA - 9002582310158, SA - 9002582310165
• Customs tariff number: NA - 39219090, SA - 39199080

Processing

• Cutting: possible (both NA and SA)
• Punching: not possible
• Drilling: possible (both NA and SA)
• Sawing: NA - possible, SA - not possible
• Milling: NA - possible, SA - not possible
• Laser cutting: possible (both NA and SA)
• Hot bending: NA - possible (only outer corner by heating reverse side), SA - not possible
• PVA compressible: NA - conditionally possible, SA - not possible
• Digital printing: possible (samples available for printing tests)
• Screen printing: not possible due to structure

Extra equipment

• Special formats: not available
• Further thicknesses: not available
• Cuttings: available
• Magnetic available: not available
• PVA treatment orderable: NA - available on request, SA - not available
• Special colors: available
• Further variants: DECO-LINE
• EN13501-1 Flammability orderable: available
• ASTM E84 Flammability orderable: available

Accessories

• Glue recommendation: NA - putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartridge), SA - not necessary
• Matching edges: not available
• Matching profiles: not available

Cleaning

• Do not use abrasive cleaners, solvent cleaners, or pure alcohol
• For light dirt: use a soft, dust-free cleaning cloth
• For heavy dirt: use standard plastic or window cleaner (spray onto cloth, not directly onto surface)

Additional Info

• Due to the pattern, mechanical assembly (screws, spacers) is generally recommended
• Applications in the ceiling area must be attached mechanically

Colour variants

• SL FACET Red Brown AR
• SL FACET Copper brushed AR
• SL FACET Green Steel brushed AR
• SL FACET Silver

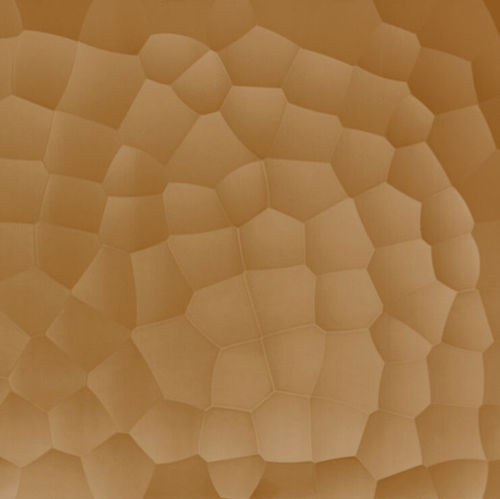

Panel photo

• Full-plate image of the design panel with a red-brownish, glossy, and reflective surface

Related Products

• DM Red Brown AR (DECO-LINE Display)

Characteristics / Technical Specifications

• Product line: STRUCTURE-LINE
• Model: SL FACET Red Brown AR
• Surface: Glossy, reflective, red-brownish, hammer blow structure
• Material: PET surface, HIPS base
• Thickness: 2 mm (NA), 2.3 mm (SA)
• Max. relief height: 3.5 mm (NA), 3.8 mm (SA)
• Weight: 5.6 kg (NA), 6.2 kg (SA)
• GTIN/EAN: 9002582310158 (NA), 9002582310165 (SA)
• Customs tariff: 39219090 (NA), 39199080 (SA)
• Temperature stability: up to 50°C
• Wet room suitability: limited
• Abrasion resistance: excellent
• Flammability: EN 13501-1 (E)
• Protection foil: included
• Processing: cutting, drilling, laser cutting, digital printing (screen printing not possible)
• Cleaning: soft cloth, standard plastic/window cleaner
• Mechanical assembly recommended for installation
