Hardwood bridge SOLO

COR-TEN® steelslabpedestrian

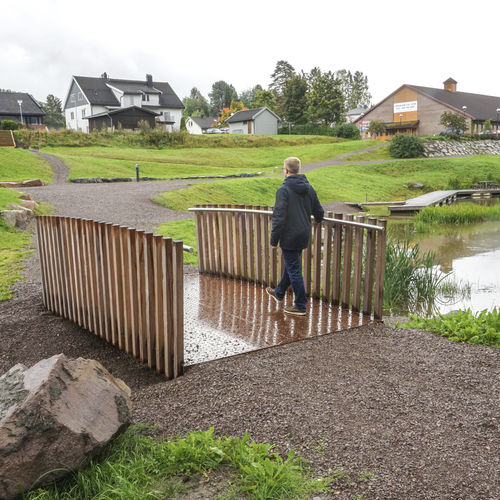

Solo Bridges are small pedestrian bridges that are preferably executed with a slight arch. The entire load-bearing deck structure comprises a thick-walled Corten steel plate: maximum dimensions 3 m - 10 ft wide and 8 m - 26 ft long. After a while, the horizontal Corten sheet will turn dark brown. As an alternative to Corten steel, the bridge deck can be finished with Solideck®70 in FSC hardwood or All Black.

The Solo fence is equipped with a stainless steel handrail on the inside (Ø 48 mm - 2”). The vertical posts are 70x70 mm -3”x3” and available in FSC hardwood such as in the Solid range or in recycled black plastic All Black beams. The result is a bridge fence with a distinctly graphic character. The posts are mounted invisibly and remain adjustable after installation.

Possibilities and constraints
. The maximum length of a single span is ca. 8 m
. Available as a flat or an arched bridge
. A width of maximum ca. 300 cm is advised because of the decking material
. On request the main dimensions of this product can be customized
. Norm bridge: Eurocode + nat annex
. Norm fence: NPR-CEN/TR 16949:2016
