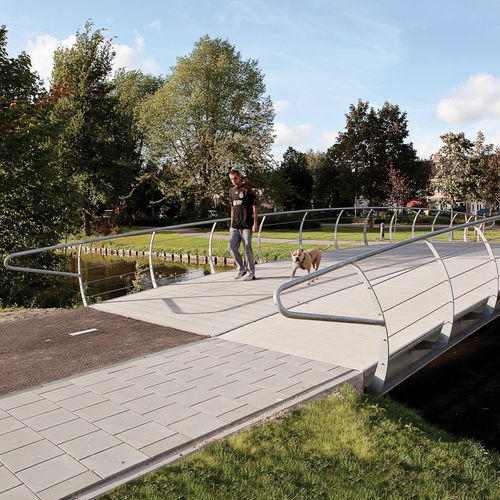

COR-TEN® steel bridge SHORTLINE

steelarchslab

Product overview
The Shortline Bridge has a contemporary feel. It is delivered largely prefab and can be supplied as flat or arched. Typical delivery times are short (average 12-14 weeks after approval of drawings), installation on site usually requires only a few days. The delivery lead time depends largely on the clients decision-making process rather than the manufacturing process.

Design and fencing options

• Nautic fence: curved balusters (galvanised steel, Corten or double powder coated steel) with continuous stainless-steel cables and tensioners.
• ZigZag fence: vertical bars fixed alternately to a bottom rail, creating a subtle 3D ZigZag effect with a protective base "fringe"; closed design that is difficult to climb, meeting most international standards.

Bridge Process
Streetlife uses a six-step plan from idea to realisation. Short delivery times are possible (average 12-14 weeks after drawing approval). Bridges are delivered almost entirely prefab, so installation usually takes only a few days. The process emphasises client approvals, drawings and prefab delivery to minimise on-site construction time.

Materials (selected information)
Corten Steel
Material: Weathering steel
Colour: Warm red-brown
Texture: Rough
Years to oxidate: 1-3 years
Lifespan: ca. 50 years
Maintenance: None
Recyclable: Yes

Powder Coating
Finish: Powder Coating
Applicable to: steel, aluminium, Corten Steel, galvanised steel
Colour: RAL (customisable)
Texture: Smooth
Lifespan: ca. 10 years
Maintenance: None
Recyclable: Yes

Notes on materials and options

• Materials available include Corten Steel and Powder Coating options; some materials are indicated as recyclable.
• Decking options and balustrade accessories, construction and engineering services are available as add-ons at request.

Caractéristiques / spécifications techniques

• Maximum single span: approx. 16 m
• Available as flat or arched bridge
• Recommended maximum deck width: approx. 300 cm (dependent on decking material)
• Main dimensions can be customised on request
• Bridge design standard: Eurocode + national annex
• Fence standard: NPR-CEN/TR 16949:2016
• Typical delivery: prefab delivery, short on-site installation (few days)
