Steel bridge CROSS&CONNECT

galvanised steelaluminumCOR-TEN® steel

Description

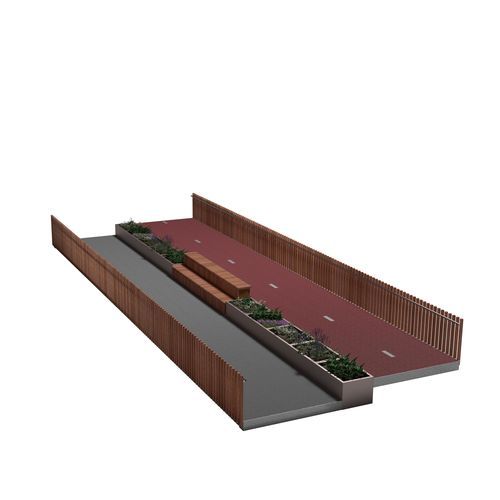

The Cross&Connect Bridges is a bridge concept with a two-lane deck at two different heights that can split (for example in a Y) to connect three locations within a single structure. The space between lanes can incorporate planting troughs and seating, offering resting points and guiding pedestrian and cycle circulation.

Concept & Function

• Two-lane pedestrian/cycle deck with possible level difference.
• Dividing configuration (e.g. Y-shape) to link up to three points.
• Space between lanes designed for planting troughs and bench seating.
• Designed for soft mobility (pedestrians, bicycles) and as viewpoint/rest area.
• Configurable product: dimensions, composition and options adjustable to project requirements.

Options / Accessories

• Decking (surfacing)
• Construction (custom build options)
• Engineering services (structural & technical)
• Bowie Bridges balustrade
• Solo Bridges balustrade

Materials & Finishes

• Corten steel
  Material: Corten steel
  Color: Warm red-brown
  Texture: Rough
  Oxidation time: 1–3 years
  Estimated service life: approx. 50 years
  Maintenance: None required
  Recyclable: Yes
• Powder coating (thermolaquage)
  Finish: Two-layer powder coating
  Applicable materials: Steel, aluminium, Corten steel, galvanized steel
  Color: RAL colours, DB grey on request
  Texture: Smooth
  Estimated service life: approx. 10 years (depends on environment and use)
  Maintenance: Annual rinsing with fresh water; additional maintenance with low-alkaline cleaner if necessary

Photos & Visuals

• Conceptual and product photographs available (general views, detail views and in-context shots).

Instructions / Customization

• Product configurable: choice of material, finish, balustrade options and accessories.
• Ability to attach drawings and comments when requesting a quotation (custom-made product).

Characteristics / Technical specifications

• Product type: Modular pedestrian bridge / footbridge (double-lane, Y-configuration possible)
• Use: Soft mobility (pedestrians, bicycles), rest areas and planting between lanes
• Available materials: Corten steel (oxidised appearance), galvanized steel, aluminium; powder coating (two-layer)
• Finishes: Powder coating RAL / DB-Grey or natural Corten steel
• Estimated service life: Corten steel ~50 years; powder coating approx. 10 years (depends on use/environment)
• Maintenance: Corten steel - none required; Powder coating - annual rinsing with fresh water
• Recyclability: Corten / galvanized steel recyclable
• Options & add-ons: decking, construction options, engineering services, balustrades (Bowie / Solo), others on request
• Customization: dimensions, composition and accessories configurable; possibility to attach drawings and comments to the quote request
• Photographs available: product and conceptual views provided for presentation and specification
