Hardwood bridge BRANCHES

COR-TEN® steelarchprecast

Overview

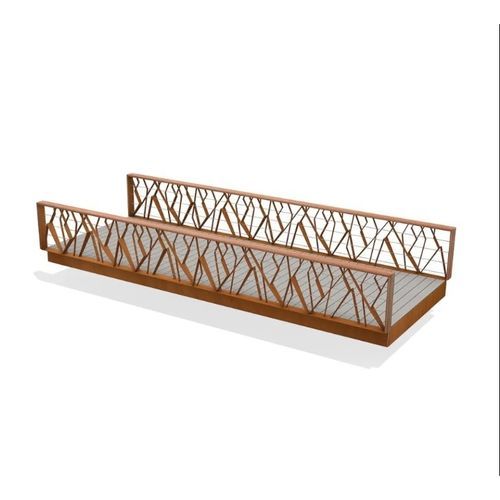

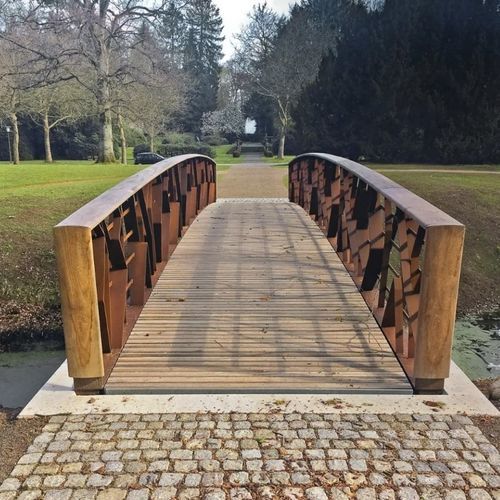

This Branches bridge features a continuous fence formed by branching Corten steel strips and a hardwood handrail, delivering an organic, open appearance. Available in flat or slightly arched versions.

Product details

• Bridge type: Branches bridge (continuous fence with branching Corten steel strips)
• Finish: hardwood handrail (example: Solideck®70 hardwood decking option)
• Versions: flat or slightly arched
• Customization: main dimensions and finishes available on request

Performance & delivery
Average delivery time after approval of drawings: 12–14 weeks. Bridges are delivered largely prefabricated; on-site installation typically requires only a few days depending on site conditions.

Materials & finishes (examples)
Corten Steel
Material: weathering steel
Colour: warm red-brown
Texture: rough
Years to oxidize: 1–3 years
Lifespan: approx. 50 years
Maintenance: none required
Recyclable: yes

Powder Coating
Finish: two-layer powder coating
Material: steel / aluminium / Corten / galvanised steel
Colour: RAL (custom colours possible)
Texture: smooth
Lifespan: approx. 10 years
Maintenance: minimal cleaning
Recyclable: yes

Bridge process & notes
Streetlife follows a multi-stage workflow from concept to realization. Production emphasizes prefabrication to reduce on-site assembly time. Short delivery times are possible depending on approval and project decisions; typical lead time is 12–14 weeks after drawing approval.

Technical specifications

• Maximum single span: approx. 16 m (52 ft)
• Standard widths: typically 2 m or 3 m (approx. 6.6 ft or 10 ft); advised maximum width depending on decking: approx. 300 cm
• Available versions: flat or slightly arched
• Customization: main dimensions and finishes adaptable on request
• Standards: Bridge: Eurocode + national annex; Fence: NPR-CEN/TR 16949:2016
• Delivery & manufacture: prefab delivery; typical lead time 12–14 weeks after drawing approval
