Fixing mortar ULTIBED 90

reinforcingfor masonryfor concrete

Overview
Ultibed Mortar 90 is a general purpose rapid setting bedding mortar that provides a return to service time of 90 minutes after being mixed and placed. It is formulated for highways use and is suitable for applications requiring high early strength gain and a quick return to service time. Ultibed Mortar 90 fully complies with National Highways HD 27/15.

Key product description

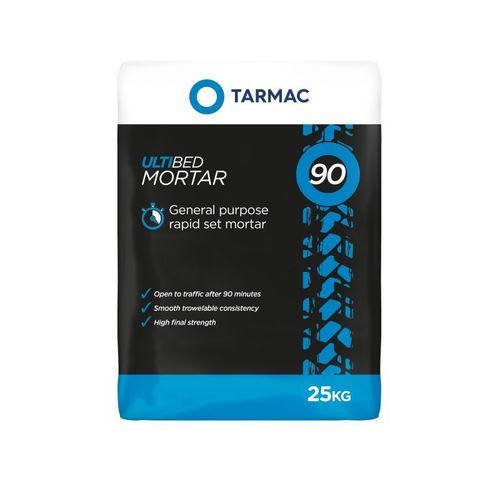

Ultibed Mortar 90 is a one-component factory blended bedding mortar composed of cements, additives and graded aggregates. It is rapid set with high early strength development and a smooth trowelable consistency. The product is available in 25 kg water resistant bags and tubs and is suitable for both planned and emergency repairs.

Applications

• Bedding mortar for setts
• Bedding mortar for street furniture
• Bedding mortar for inspection chambers
• Bedding mortar for manhole covers
• Bedding mortar for stanchion posts
• Bedding mortar for inspection frames
• Bedding mortar for gully grates
• Bedding mortar for kerb stones
• Bedding mortar for inspection covers

Benefits / Features

• Rapid set and fast return to service (90 minutes in ambient conditions 18-22°C)
• High early strength gain to reduce construction and road closure times
• Excellent bond strength without the use of a primer
• Versatile for use with concrete, brick and stone substrates
• Available in 25 kg water resistant bags and tubs
• Shrinkage compensated (shrinkage less than 0.001%)
• Smooth trowelable consistency for a good finish
• PLUS+ technology available to improve performance and reduce environmental impact
• Product benefits include enhanced strength gain, 3D fibre reinforcement and recycled glass aggregate in the blend

Technical data

• Water addition (per 25 kg): 2.5 to 3.0 litres
• Workability: 5-10 minutes
• Set time: <20 minutes
• Shrinkage: Less than 0.001%
• Density: 2250-2300 kg/m3
• Yield (per 25 kg): 12.2 litres

Strength data

• After 90 minutes: compressive strength 20.0 N/mm2; flexural strength 4.5 N/mm2
• After 4 hours: compressive strength 25.0 N/mm2; flexural strength 6.5 N/mm2
• After 1 day: compressive strength 45.0 N/mm2; flexural strength 7.5 N/mm2
• After 7 days: compressive strength 60.0 N/mm2; flexural strength 8.0 N/mm2
• After 28 days: compressive strength 75.0 N/mm2; flexural strength 8.5 N/mm2

Usage and mixing
Mix each 25 kg bag with 2.5–3.0 litres of cool, clean water. Pre-measure the required water into a clean mixing vessel, steadily add the powder to the water and mix for 2–3 minutes until a smooth homogeneous consistency is achieved. For best results use a mechanical mixer (forced-action high shear mixer or slow-speed drill and paddle); the product can also be mixed by hand. Clean tools and equipment with water as soon as practicable, away from the application area.

Quality control
All product batches are factory blended, tested and packaged to quality control procedures in accordance with BS EN ISO 9001.

caractéristiques / spécifications techniques

• Product type: general purpose rapid setting bedding mortar for highways use
• Return to service: 90 minutes at ambient 18-22°C
• Packaging: 25 kg water resistant bags and tubs
• Workability: 5-10 minutes
• Water addition (25 kg): 2.5–3.0 L
• Set time: <20 minutes
• Shrinkage: <0.001%
• Density: 2250–2300 kg/m3
• Yield per 25 kg: 12.2 litres
• Strength (90 min / 4 h / 1 d / 7 d / 28 d): compressive 20 / 25 / 45 / 60 / 75 N/mm2; flexural 4.5 / 6.5 / 7.5 / 8.0 / 8.5 N/mm2
• Compliance: National Highways HD 27/15
• Additional: shrinkage compensated, good bond without primer, 3D fibre reinforcement and recycled glass aggregate options available
