Wall hatch UF-5000
for ceilingsquaremetal

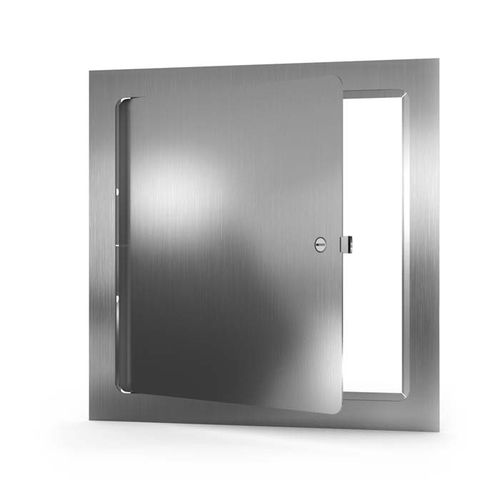

Wall hatch - UF-5000 - Acudor Products Ltd. - for ceiling / square / metal

Wall hatch - UF-5000 - Acudor Products Ltd. - for ceiling / square / metal - image - 2

Wall hatch - UF-5000 - Acudor Products Ltd. - for ceiling / square / metal - image - 3

Wall hatch - UF-5000 - Acudor Products Ltd. - for ceiling / square / metal - image - 4

Wall hatch - UF-5000 - Acudor Products Ltd. - for ceiling / square / metal - image - 5

Wall hatch - UF-5000 - Acudor Products Ltd. - for ceiling / square / metal - image - 6

Add to favorites

Compare this product

Characteristics

Applications

wall, for ceiling

Shape

square

Material

metal

Other characteristics

for home automation systems

Length

Min.: 152 mm
(6 in)

Max.: 762 mm
(30 in)

Width

Min.: 152 mm
(6 in)

Max.: 610 mm
(24 in)

Description

Application • Installation in Drywall, Plaster, Masonry, Tile or any flush surface Product Features • Door panel has rounded safety corners providing an architecturally pleasing appearance • One piece trim flange will not rack, sag or distortion • Unique continuous concealed hinge will not bind UF-5000 Access Door Specifications: Material: Up to 16” X 16” - 16 gauge, 18 gauge mounting frame, over 16” X 16” - 14 gauge door, 16 gauge mounting frame Door: Flush to frame with rounded safety corners Mounting Frame: One piece outer flange welded to mounting frame Hinge: Contiuous, concealed Latch: Stainless Steel screwdriver operated cam latch Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch Finish: Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baking enamel OR Stainless Steel: Type 304 - #4 satin polish
