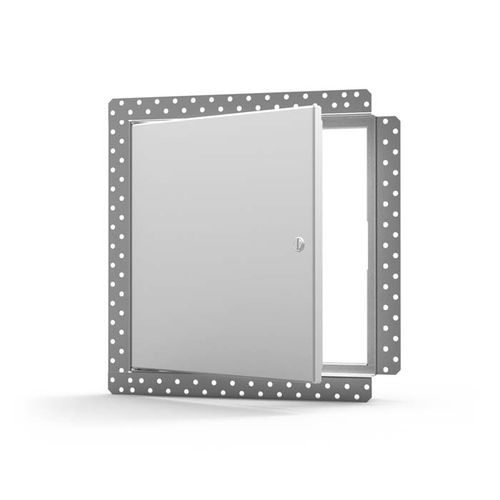

Wall hatch DW-5040
for ceilingsquarestainless steel

Wall hatch - DW-5040 - Acudor Products Ltd. - for ceiling / square / stainless steel

Wall hatch - DW-5040 - Acudor Products Ltd. - for ceiling / square / stainless steel - image - 2

Wall hatch - DW-5040 - Acudor Products Ltd. - for ceiling / square / stainless steel - image - 3

Wall hatch - DW-5040 - Acudor Products Ltd. - for ceiling / square / stainless steel - image - 4

Wall hatch - DW-5040 - Acudor Products Ltd. - for ceiling / square / stainless steel - image - 5

Wall hatch - DW-5040 - Acudor Products Ltd. - for ceiling / square / stainless steel - image - 6

Add to favorites

Compare this product

Characteristics

Applications

wall, for ceiling

Shape

square

Material

stainless steel

Other characteristics

for home automation systems

Length

Max.: 914 mm
(36 in)

Min.: 152 mm
(6 in)

Width

Max.: 914 mm
(36 in)

Min.: 152 mm
(6 in)

Description

Application Designed specifically for installation in drywall walls and ceilings after the drywall has been installed Product Features Formed door panel with flanges on four sides Unique concealed hinge, door flange is a perforated taping bead with pre-punched holes DW-5040 Access Door Specifications: Material: 20 gauge galvanized formed door panel, 26 gauge galvanized frame Door: Formed door panel with multiple bends for added strength, flanged on four sides, Integral perforated taping bead adds rigidity Hinge: Concealed Standard Latch: Slot screwdriver operated cam latch Optional Latches/Locks: Cylinder lock & key; allen head cam latch; spanner head cam latch, torx Finish: 5 stage iron phosphate preparation with white baked-on polyester powder coat on door panel. Frame to be mill finish
