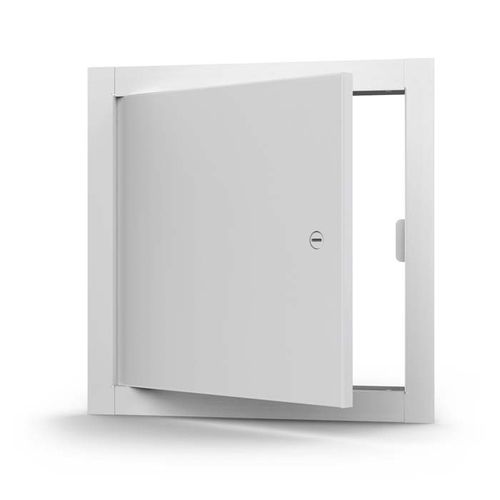

Wall hatch ED-2002
for ceilingsquaremetal

Wall hatch - ED-2002 - Acudor Products Ltd. - for ceiling / square / metal

Wall hatch - ED-2002 - Acudor Products Ltd. - for ceiling / square / metal - image - 2

Wall hatch - ED-2002 - Acudor Products Ltd. - for ceiling / square / metal - image - 3

Add to favorites

Compare this product

Characteristics

Applications

wall, for ceiling

Shape

square

Material

metal

Other characteristics

for home automation systems

Length

Max.: 915 mm
(36 in)

Min.: 152 mm
(6 in)

Width

Max.: 610 mm
(24 in)

Min.: 152 mm
(6 in)

Description

Application Installation in Drywall, Plaster, Masonry, Tile or any flush surface Economical and attractive access door for walls & ceilings Product Features Formed door panel Concealed hinge 12" x 12" and smaller doors have bend tabs to aid in installation ED-2002 Access Door Specifications: Material: 18 gauge steel door and frame Door: Flush to frame with reinforced edges Mounting Frame: 1” wide outside flange with 1 7/16” deep mounting Frame: Knock over mounting tabs provided on 6x6, 8x8, 10x10 and 12x12 Hinge: Concealed Hinge Pin Latch: Stainless steel slot screwdriver operated cam latch Optional Latches/Locks: Cylinder lock and key Finish: 5 Stage iron phosphate preparation with prime coat of White alkyd baking enamel
