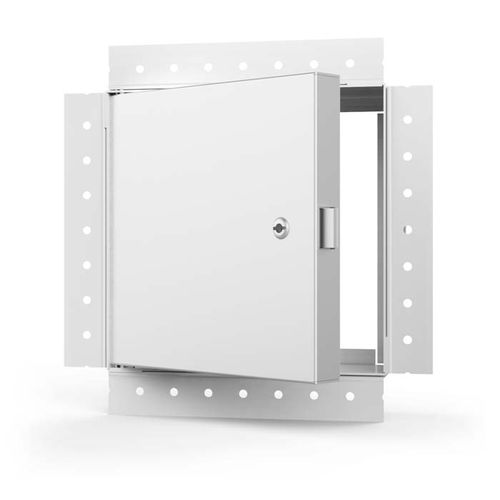

Wall hatch FB-5060-DW

squaregalvanised steelfire-rated

Application For drywall walls applications. Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor Product Features Concealed hinge Self-closing Self-Latching Drywall taping bead Inside latch release Available with a removable door panel FB-5060-DW Access Door Specifications: Material: Steel or Stainless Steel Door: 16 gauge Mounting Frame: 16 gauge. Flush to frame with reinforced edges, drywall taping bead flange Hinge: Concealed Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional) Max size 36 x 48 Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks. Finish: stage iron phosphate preparation with prime coat of White alkyd baked-on enamel Stainless Steel: Type 304 - #4 satin polish optional
