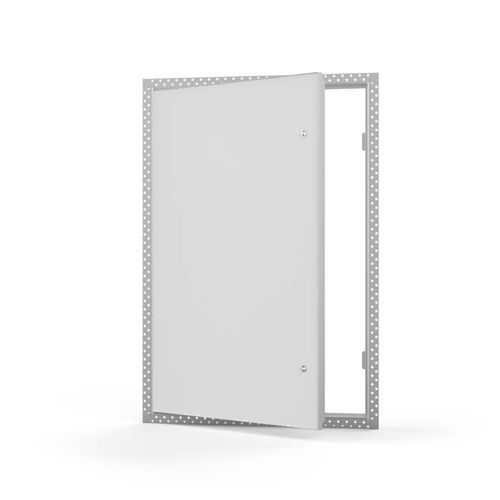

Wall hatch FW-5015

squaremetalfire-rated

Application For installation in drywall walls requiring concealing of the door panel consistent to surroundings For use in walls, fire-rated for up to 90-minutes with a temperature rise of max 250° C (450°F) over 30 minutes Product Features Recessed reinforced insulated door fitted with 5/8” Fire-rated drywall. Concealed hinge & self-centering device ensures seamless appearance in walls Self-closing & self-latching door mechanism Perforated Frame ensures trouble-free application of skim coat to edge of the door Zinc coated steel provides superior corrosion resistance Testing standards UL 10(b) and ULC S104 FW-5015 Access Door Specifications: Door: Steel-22 Gauge recessed fitted with 5/8” thick drywall suitable to accept skim coat finish on site. Door Frame: Steel-22 Gauge press bent for strength and rigidity with pre-punched flanges for convenient mounting and accepting skim coat finish on site Hinge: Concealed Fire Rating (Walls): Meets 1½ hour fire rating requirement in accordance with UL 10(b) and CAN/ULC S104-10 for max size upto 24” x 36” Latch: Self-latching bolt, operated by flush key Finish: Satin coat steel
