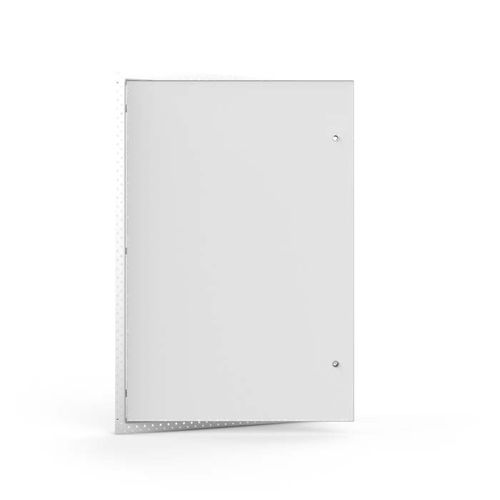

Wall hatch FWC-5015rectangularmetalfire-rated
Add to favorites
Compare this product
Characteristics
- Applications
- wall
- Shape
- rectangular
- Material
- metal
- Other characteristics
- fire-rated, for home automation systems
- Length
305 mm, 406 mm, 457 mm, 610 mm, 914 mm
(12 in, 16 in, 18 in, 24 in, 36 in)- Width
305 mm, 406 mm, 457 mm, 610 mm
(12 in, 16 in, 18 in, 24 in)
Description
Application
For installation in drywall ceilings requiring concealing of the door panel consistent to surroundings
For use in Fire Rated Ceilings that needs tested and certified doors having Fire Resistance Rating of 90 minutes.
Product Features
Recessed reinforced insulated door fitted with 5/8” Fire-rated drywall.
Concealed hinge & self-centering device ensures seamless appearance in ceiling
Self-closing & self-latching door mechanism
Perforated Frame ensures trouble-free application of skim coat to edge of the door
Zinc coated steel provides superior corrosion resistance
Testing Standards – CAN ULC S101-14, ASTM E119-16 and NFPA 251
FWC-5015 Access Door Specifications:
Door: Steel-22 Gauge recessed fitted with 5/8” thick drywall suitable to accept skim coat finish on site.
Door Frame: Steel-22 Gauge press bent for strength and rigidity with pre-punched flanges for convenient mounting and accepting skim coat finish on site
Hinge: Concealed
Fire Rating (Ceilings): Meets 90 minutes Fire Resistance Rating in accordance with CAN ULC S101-14, ASTM E119-16 and NFPA 251
Latch: Self-latching bolt, operated by flush key
Finish: Satin coat steel
