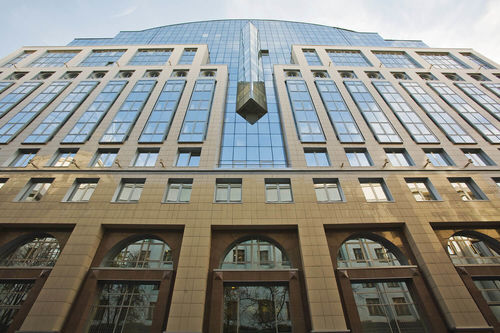

Panel curtain wall COMFORT M4

structural glazingaluminum and glassfor mullions and transoms

Description
COMFORT M4 is an insulated structural curtain wall system with stick-type hanging frames designed for accelerated installation and structural silicon glazed joints.

Advantages

• Seamless structural appearance
• Improved energy performance for building envelopes
• Enhanced occupant comfort
• Higher security performance
• Increased natural light penetration
• Proven performance in air and water tightness, wind resistance and thermal transmittance (Uf)
• Improved structural behaviour under extreme natural actions
• Wide range of bespoke design options to suit project requirements
• Optional electric actuation for operable elements

Certificates

• Aluminum TUV Austria OK Recycled

Generic
AESTHETICS: Structural

Technical Characteristics
EXTERIOR VISIBLE WIDTH: 55 mm

Performance
SECURITY OF VISIBLE LOAD: Design Load ± 2 KN/m1
WATER TIGHTNESS: R6, Window 9A
AIR PERMEABILITY: Class 4
WIND LOAD RESISTANCE: C4

Characteristics
TRANSOM DEPTH: 47 – 154 mm
MULLION MAX INERTIA: 501
TYPES OF TYPOLOGY: Fixed, Projected
MULLION DEPTH: 49 – 139 mm
TRANSOMS MAX INERTIA: 68
THERMAL TRANSMITTANCE Uf: from 3,7 W/m²K
TYPE OF HOLDING GLAZING: Structural Silicon
MAXIMUM WEIGHT: 180 Kg

Typologies
All available typologies include outward-hinged doors, inward-hinged doors, projected-outward windows and other standard curtain-wall configurations.

Characteristics / Technical specifications

• Denomination: COMFORT M4
• Exterior visible width: 55 mm
• Transom depth: 47 – 154 mm
• Mullion depth: 49 – 139 mm
• Mullion max inertia: 501
• Transoms max inertia: 68
• Uf: from 3,7 W/m²K
• Type of holding glazing: Structural silicon
• Maximum glass weight: 180 Kg
• Security of visible load: Design Load ± 2 KN/m1
• Water tightness: R6, Window 9A
• Air permeability: Class 4
• Wind load resistance: C4
