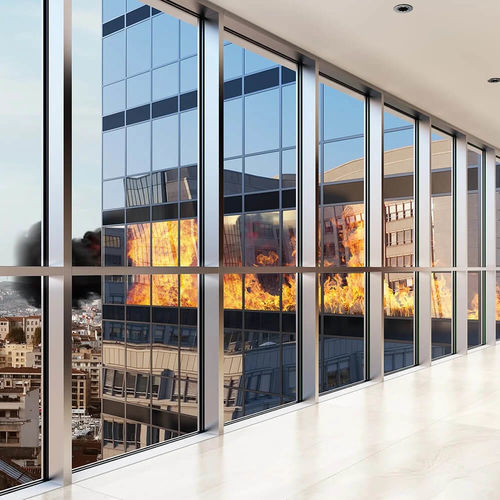

Curtain wall with aluminum frame M7FR

modularaluminum and glassfire-rated

M7R is a curtain wall system classified under the E160 standard. ln addition to the range of fireproof accessories and profiles utilized in M50FR, steel reinforcement is incorporated into the system, enhancing its fire performance to a remarkable 60 minutes.

Features:
• System depth of 50 mm, offering a modern appearance.
• Versatile mullion and transom depth options spanning from 142 to 267 mm
and 141 to 266 mm.
• Structural integrity thanks to the mullion and transom Moment of Inertia
options ranging from 193 to 1475 cm4 and 176 to 974 cm4.
• Expansive glazed areas with a maximum glass width of 2000 mm and a
maximum glass height of 3000 mm, allowing for abundant natural light.
• Compatibility with fireproof glass and aluminium panels.
