Glass facade system MB- SG50

glass facade system
glass facade system
Add to favorites
Compare this product

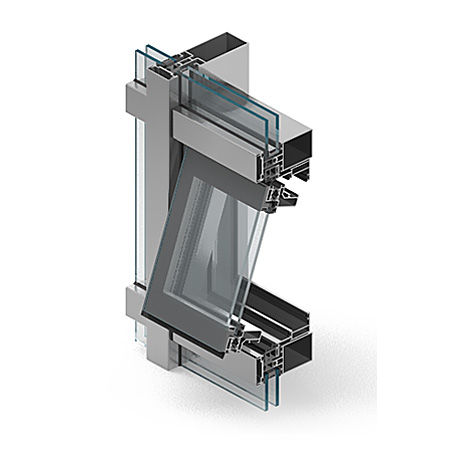

Together with developing a new MB-SG50 structural wall, the ALUPROF S.A. offer of façade solutions was introduced with a construction of the tilt window to be used in a transom-mullion wall, also basing on the MB-SG50 system. The MB-SG50 tilt window may be applied in the classic system of a transom-mullion wall MB-SR50, as well as in modified systems MB-SR50 PL and MB-SR50 EFEKT. Ones of the most important advantages of this solution are the unusually economical shapes, which add lightness to the entire structure, what is of the particular significance in the view from the outside. Thanks to application of the most modern technology of structural gluing, based on gluing the outer glass panel to the aluminium frame with structural silicon, we have avoided the necessity to use any aluminium elements from the outside or any mechanical joints for fitting the glass panel. It resulted in maintaining the uniform line of the width of 16 mm on the façade from the outer side, and causes that the tilt windows do not differ from the neighbouring permanent compartments. In order to obtain the best possible qualities as regards thermal and acoustic insulation, the latest technical solutions concerning thermal inter-layers and glazing gaskets was applied. A very effective ventilation and drainage system was also designed, which guarantees a long-lasting and failure-free window operating.


2 Pages
