Filtration pool control panel 25717

for pumpwaterproofwith remote control

Product description

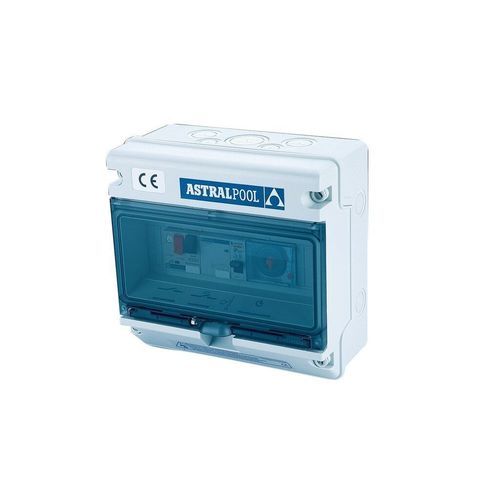

IP-65 rated control box for filtration pump control with transparent front door, lock and keys; suitable for wall mounting and indoor/outdoor use where IP65 is required.

Electrical compatibility

• 220/240V 1-phase (P+N+T) 50Hz/60Hz
• 380/415V 3-phase (3P+N+T) 50Hz/60Hz
• 220/230V 3-phase (3P+T) 50Hz/60Hz

Functions and connections
24-hour master timer with 15-minute programming steps. Connections for pump remote control (run/stop) and for auxiliary equipment (e.g., cold detector, level control). Cable glands provided for each cable entry/exit.

Supplied with

• Electric schematic
• Connection diagram
• Installation instructions
• CE certification
• Cable gland for each input/output
• Screws and wall plugs (4) for mounting

Selection and operation
Select the control box according to the filtration pump nominal current. Unit includes magnetothermic protection selectable from 1.6 A to 10 A, contactor and 24h program timer. Operating selector with 3 positions: Auto / 0 / Manual.

Codes / Types
CODE | Description | Spare Parts
25717 | Type A (see technical table) |
25718 | Type B (see technical table) |
25719 | Type C (see technical table) |
25720 | Type D (see technical table) |

Characteristics / technical specifications

• Protection rating: IP-65
• Front: transparent glass with lock and keys
• Voltage compatibility: 220/240V 1~ (P+N+T), 380/415V 3~ (3P+N+T), 220/230V 3~ (3P+T) — 50/60Hz
• Timer: 24-hour master timer with 15-minute steps
• Remote connections: pump run/stop and auxiliary equipment (e.g., cold detector, level control)
• Supplied documentation: electric schematic, connection diagram, installation instructions
• Certifications and accessories: CE certification; cable glands for each entry/exit; screws and wall plugs (4) for mounting
• Protection elements: magnetothermic protection adjustable from 1.6 A to 10 A; contactor
• Operating selector: 3 positions — Auto / 0 / Manual
• Available types/codes: 25717 (Type A), 25718 (Type B), 25719 (Type C), 25720 (Type D)
