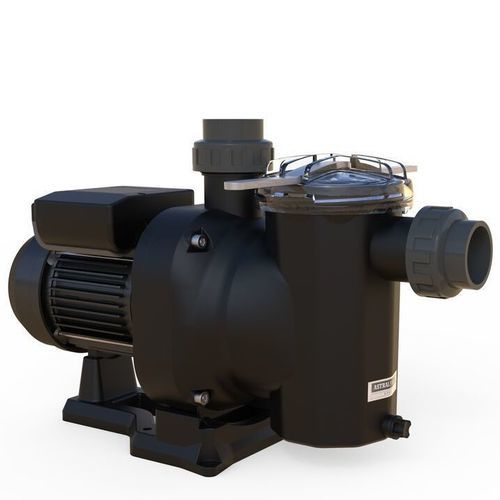

Swimming pool pump SENA

Overview
Next-generation range of compact self-priming pumps. Power from 0.33 HP to 1.25 HP for single-phase motors and from 0.75 HP to 1.25 HP for three-phase motors. GS marked. Motor protection IP-55 and insulation Class F. All parts in contact with water are stainless steel AISI-316. Pipeline connection via glue sleeve Ø50 mm. Flow rates are indicated according to motor power and head (6 m head for 0.33 HP; 8 m head for 0.5 HP; 10 m head for the rest of the range). Speed 3,000 rpm.

Reference table
REFERENCE | Description | Spare parts
25461 | 7,000 l/h - 1/3 CV - 230 V II | See spare parts
25462 | 7,800 l/h - 1/2 CV - 230 V II | See spare parts
25463 | 10,400 l/h - 3/4 CV - 230 V II | See spare parts
25464 | 10,400 l/h - 3/4 CV - 230/400 V III | See spare parts
25465 | 12,800 l/h - 1 CV - 230 V II | See spare parts
25466 | 12,800 l/h - 1 CV - 230/400 V III | See spare parts
25467 | 14,000 l/h - 1.25 CV - 230 V II | See spare parts
25468 | 14,000 l/h - 1.25 CV - 230/400 V III | See spare parts

Documents

• Installation manual EN (Installation manual)
• Quick start guide Pump Sena (EN / ES / FR)
• Commercial brochure Pump Sena EN

Notes / Technical specifications

• Type: Compact self-priming pump
• Materials: Wetted parts in AISI-316 stainless steel
• Motors: Single-phase and three-phase available
• Power range: 0.33 HP (1/3 CV) to 1.25 HP
• Three-phase range: 0.75–1.25 HP
• Marking: GS
• Motor protection: IP-55
• Motor insulation: Class F
• Pipe connection: glue sleeve Ø50 mm
• Typical flow examples: 7,000 l/h (1/3 CV), 7,800 l/h (1/2 CV), 10,400 l/h (3/4 CV), 12,800 l/h (1 CV), 14,000 l/h (1.25 CV)
• Speed: 3,000 rpm
• Compatible with seawater (AISI-316 wetted parts)
