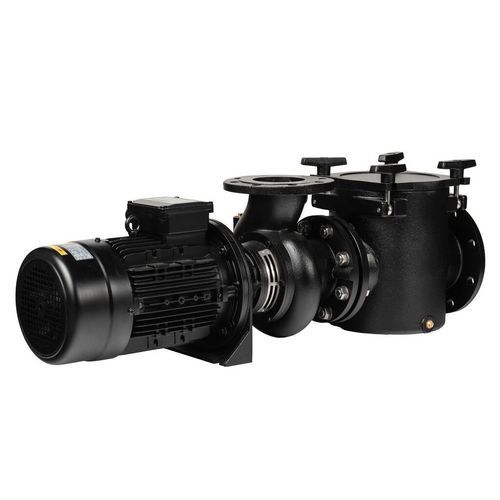

Swimming pool pump ARAL PLUS C-3000

Description
Centrifugal pump manufactured with a cast iron body and stainless-steel wet parts. Mechanical seal in stainless steel, stainless-steel AISI-316 shaft and AISI-304 strainer basket. Motor protection IP-54. Nominal speed 3000 rpm. Flanged connections PN 16 according to DIN 2501. Suitable for industrial liquid transfer applications. Available power range: 3.0 HP to 15.0 HP. Voltage: 400/690 V for all models except the 3.0 HP version (230/400 V).

Variant table
CODE | Description | Spare Parts
76918 | 4H 230/400 50h | See Spare Parts
76919 | 4H 400/690 50h | See Spare Parts
76917 | 3H 230/400 50h | See Spare Parts
76927 | 12,5H 400/690 50h | See Spare Parts
76922 | 5,5H 230/400 50h | See Spare Parts
76925 | 7,5H 400/690 50h | See Spare Parts
76926 | 10H 400/690 50h | See Spare Parts
76920 | 5,5H 230/400 50h | See Spare Parts
76923 | 5,5H 400/690 50h | See Spare Parts
76924 | 7,5H 230/400 50h | See Spare Parts
76921 | 5,5H 400/690 50h | See Spare Parts

Technical characteristics / specifications

• Construction: Body made in cast iron
• Mechanical seal: Stainless steel
• Motor protection: IP-54
• Shaft: Stainless steel AISI-316
• Strainer basket: Stainless steel AISI-304
• Speed: 3000 rpm
• Connections: PN 16 according to DIN 2501
• Available power range: 3.0 HP to 15.0 HP
• Voltage: 400/690 V for all models except 3.0 HP (230/400 V)
