Lighting pool control panel 69916

for filtrationmulti-functionfor water level control

Description

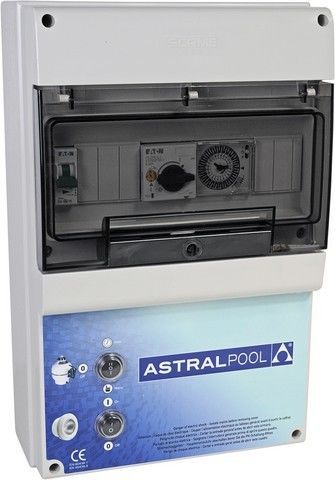

IP-65 enclosure with transparent front glass, lock and keys. Control box designed for protection and control of a filtration pump and the management of one underwater light, suitable for pool and marine installations. 24H programmable timer with 15-minute steps. Connections for pump remote control (run/stop) and for auxiliary equipment (e.g. cold detector, level control).

Compatibility

• 220/240V 1-phase (P+N+T) 50Hz/60Hz
• 380/415V 3-phase (3P+N+T) 50Hz/60Hz
• 220/230V 3-phase (3P+T) 50Hz/60Hz

Functions and features

• 24H master clock with 15-minute (¼h) steps
• Connections: pump remote control (run/stop) and auxiliary inputs (e.g. cold detector, level control)
• Magnetothermic protection for up to 2 pumps (pump 1: 6–10 A; pump 2: 2–10 A)
• Contactors included
• Control selector: 3 positions – Auto / 0 / Manual
• 230V 10A protected output for auxiliary lighting
• 12V 315VA protected output for 1 underwater light
• Glands for each cable entry/exit

Supplied with

• Electric schematic
• Connection diagram
• Installation instructions
• CE certification
• Cable gland for each entry and exit
• Screws and wall plugs (4) for wall mounting

Selection note
Choose the control box according to the filtration pump nominal current and required magnetothermic protection. Ensure compatibility of supply voltage and auxiliary equipment before installation.

Codes
69916 | Type A
69917 | Type B
69918 | Type C
69919 | Type D

Technical specifications

• Protection rating: IP-65
• Front: Transparent glass with lock and keys
• Voltage compatibility: 220/240V 1~ (P+N+T) 50/60Hz; 380/415V 3~ (3P+N+T) 50/60Hz; 220/230V 3~ (3P+T) 50/60Hz
• Timer: 24H master clock with 15-minute steps
• Control positions: Auto / 0 / Manual
• Outputs: 230V 10A protected output for lighting; 12V 315VA protected output for 1 underwater light
• Protection: Magnetothermic protection ranges as specified (pump 1: 6–10A; pump 2: 2–10A)
• Includes contactors and cable glands
• Accessories: electrical schematic, connection diagram, installation instructions, CE certification, screws and wall plugs
