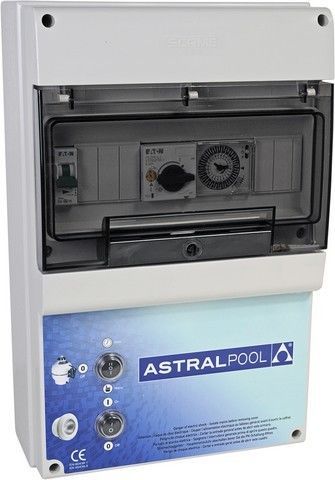

Lighting pool control panel 74991

for pumpmulti-functionprogrammable

Description
Control box designed for pump overload protection with a protected output for one set of LED underwater lights. IP65 enclosure with transparent door and lock for marine and pool installations. Adjustable thermal overload protection (1.6 to 10 A), contactor included, 24-hour programmable clock and three-position selector (Auto / 0 / Manual). Lighting output: 12 V, 100 VA.

Codes / Type
CODE | Description | Spare Parts
74991 | Type A 1l 100V
74992 | Type B 1l 100V
74993 | Type C 1l 100V
74994 | Type D 1l 100V

Documents
Installation manual, electrical diagram and certificate of conformity available in multiple languages (EN, ES, IT, FR, DE, PT).

Features / Technical specifications

• Protection rating: IP-65 (suitable for outdoor/marine proximity installations)
• Transparent door with lock and key
• Electrical compatibility: 220/240 V single-phase (P+N+T), 380/415 V three-phase (3P+N+T), 220/230 V three-phase (3P+T) — 50/60 Hz depending on model
• Thermal overload protection: adjustable range 1.6 A to 10 A
• Contactor included
• 24-hour programmable clock with hourly steps
• Three-position selector: Auto / 0 / Manual
• Lighting output: 12 V, 100 VA (protected output for one set of LED underwater lights)
• Connections: cable glands for each cable entry/exit
• Delivery: electrical schematic, connection diagram, installation instructions, CE conformity certificate, screws and wall plugs (4)
