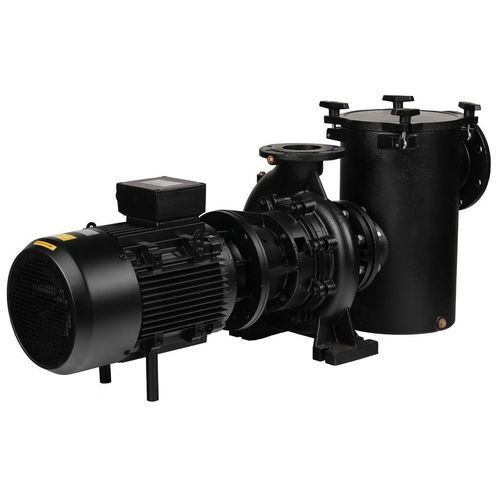

Swimming pool pump ARAL PLUS C-1500

Description
The ARAL PLUS C-1500 is a cast-iron centrifugal pump designed for public and commercial swimming pools. Its four-pole 1,450 rpm motor (available up to 25 HP) delivers high flow rates with low operational noise. Water-contact components receive a cataphoresis treatment to improve corrosion resistance and extend service life. Bronze impeller option available.

Features

• IP55 protection
• Standard motor (EN IEC 60034-7)
• Cataphoresis treatment on water-contact parts
• Flow rate: up to 340 m3/h
• Power range: 3 HP to 25 HP
• Motor: 50 Hz / 1450 rpm (60 Hz version available, code XXXX-0810)

Codes / Spare parts
CODE | Description | Spare Parts
76906 | 4H 230/400 50Hz | See spare parts
76907 | 4H 400/690 50Hz | See spare parts
76908 | 5,5H 230/400 50Hz | See spare parts
76909 | 5,5H 400/690 50Hz | See spare parts
76910 | 7,5H 230/400 50Hz | See spare parts
76911 | 7,5H 400/690 50Hz | See spare parts
76912 | 10H 400/690 50Hz | See spare parts
76913 | 12,5H 400/690 50Hz | See spare parts
76914 | 15H 400/690 50Hz | See spare parts
76915 | 20H 400/690 50Hz | See spare parts
76916 | 25H 400/690 50Hz | See spare parts

Technical specifications

• Material: cast iron (cataphoresis on water-contact components)
• Application: public/commercial pools
• Type: centrifugal pump
• Motor: four-pole, 50 Hz / 1450 rpm
• Power: 3 HP to 25 HP
• Max flow: up to 340 m3/h
• IP rating: IP55
• Compliance: standard motor EN IEC 60034-7
• Optional: bronze impeller
• Alternate frequency: 60 Hz version available (code XXXX-0810)
