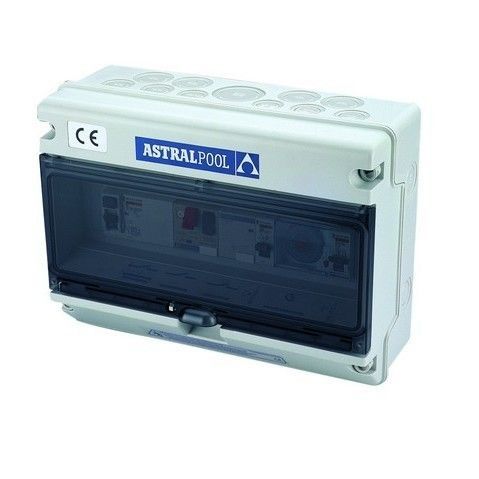

Multi-function pool control panel 23725

for pumpfor filtrationfor water level control

General description
Control cabinet for pump overload protection and underwater lighting control. IP-65 rated enclosure with transparent door, lock and key. Designed for single-phase supplies and equipped with differential (residual-current) protection and a 24 h programmable timer.

Compatibility

• 220/240V single-phase (P+N+T) 50Hz/60Hz
• 24 h programming clock with programmable steps
• Connection for remote control of the pump (run/stop) and for auxiliary equipment (cold detector, level control)

Delivered with

• Wiring diagram
• Connection diagram
• Installation instructions
• CE conformity certificate
• Cable gland for each cable inlet and outlet
• Screws and plugs (4) for wall mounting

Features

• Choose cabinet type according to the filtration pump nominal current
• Circuit breaker protection (selectable range 1.6–10 A)
• Contactor for pump control
• 24 h programmable timer
• 3-position selector: Auto / 0 / Manual
• Protected and controlled lighting output (230V 10A)

Codes
25725 | Type A
25726 | Type B
25727 | Type C
25728 | Type D

Technical specifications

• Protection rating: IP-65
• Door: Transparent glass with lock and key
• Supply compatibility: 220/240V single-phase (P+N+T), 50Hz/60Hz
• Programmable 24 h clock
• Remote control inputs for pump (run/stop) and auxiliaries (cold detector, level control)
• Included documentation: wiring diagram, connection diagram, installation instructions, CE certificate
• Cable glands provided for each cable inlet and outlet
• Mounting hardware: screws and plugs (4)
• Circuit breaker protection range: 1.6–10 A (select according to pump)
• Contactor included
• Selector: Auto / 0 / Manual
• Lighting output: protected and controlled 230V 10A
• Available models: 25725 (Type A), 25726 (Type B), 25727 (Type C), 25728 (Type D)
