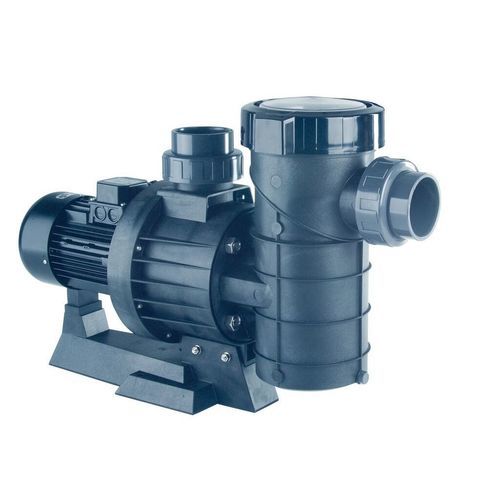

Water pump MAXIM

commercialelectricstainless steel

Overview
Centrifugal pump designed for water-circulation applications (non self-priming). Pump body and supports are manufactured in technical plastic. Motor shaft is AISI‑316 stainless steel with double insulation. Motor protection rating: IP‑55. Removable prefilter basket (8 litres) with transparent lid for easy inspection.

Models / Codes
CODE | Description | Spare parts
08003 | MAXIM 3.5 HP | See spare parts
08004 | MAXIM 4.5 HP | See spare parts
08005 | MAXIM 5.5 HP | See spare parts

Document types available

• Leaflet MAXIM Pump (EN, FR, IT, DE, ES)
• Product data sheet MAXIM Pump (EN, ES)
• Installation manual (EN, ES, FR)
• Certificates (including GS by TÜV Product Service where applicable)

Technical features / specifications

• Application: water circulation (non self-priming)
• Pump body and supports: technical plastic
• Motor shaft: AISI‑316 stainless steel
• Motor insulation: double insulation
• Motor protection rating: IP‑55
• Prefilter: removable basket, 8 litres capacity
• Prefilter lid: transparent
• Available power variants: 3.5 HP, 4.5 HP, 5.5 HP (codes 08003, 08004, 08005)
• Supply voltage (typical): 230/400 V three-phase (variants may support ±10%)
• Energy class and certifications: IE2 and GS certification where indicated
