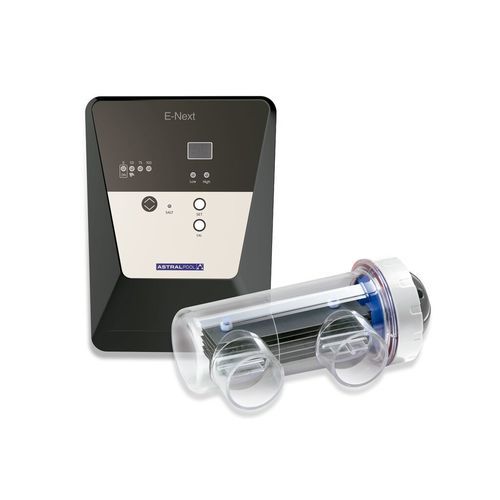

Swimming pool salt chlorinator E-NEXT

with pH regulator

Overview
Compact electrolysis saltwater chlorinator E-Next for private and semi-professional pools up to 160 m³. Available in standard and pH regulation versions, with transparent vertical cell and automatic polarity reversal for cell cleaning. LCD LED interface displays pH (pH versions) and alarm icons. Hydraulic compatibility with DN50 / DN63. No mobile app connectivity.

Key Features

• Chlorine output (g/h): 7 / 12 / 21 / 30 / 40
• Recommended pool volume (m³) per model: 25 / 50 / 80 / 120 / 160
• Salinity range (g/L): Min 5 • Recommended 5–6 • Max 12
• User interface: LCD LED display
• Displayed parameters: pH (pH versions), alarm icons
• Production modes: Normal and Cover (10%)
• Included sensors: pH sensor on pH regulation versions
• Cell cleaning: Polarity reversal (2h / 3h / test)
• Cell lifetime: approx. 8,000 hours
• Cell type & position: Transparent cell, vertical installation
• Hydraulic compatibility: DN50 / DN63
• Safety & alarms: Gas sensor and salinity alarm

Benefits

• Automated chlorination reduces manual maintenance
• Compact footprint for easy installation in technical rooms
• Integrated safety alarms protect cell and pool water

Models & spare parts (codes)
CODE | Description | Spare parts
74081 | E-Next 7 | See spare parts
74082 | E-Next 12 | See spare parts
74083 | E-Next 21 | See spare parts
74084 | E-Next 30 | See spare parts
74085 | E-Next 40 | See spare parts
74944 | E-Next pH 7 | See spare parts
74945 | E-Next pH 12 | See spare parts
74946 | E-Next pH 21 | See spare parts
74947 | E-Next pH 30 | See spare parts
74948 | E-Next pH 40 | See spare parts

Technical specifications

• Product type: Saltwater chlorinator (electrolysis)
• Chlorine production options (g/h): 7, 12, 21, 30, 40
• Recommended pool capacity (m³): 25, 50, 80, 120, 160
• Salinity operating range (g/L): Min 5; Recommended 5–6; Max 12
• Control & display: LCD LED showing pH (on pH versions) and alarm icons
• Operational modes: Normal and Cover (10%)
• Sensors: pH sensor included on pH regulation versions
• Cell maintenance: Automatic polarity reversal cleaning (2h / 3h / test)
• Cell lifetime: ≈ 8,000 hours
• Cell characteristics: Transparent, vertical installation
• Hydraulic connections: Compatible with DN50 and DN63 piping
• Safety: Gas sensor and salinity alarm
• Connectivity: No mobile app connectivity

Documentation
Brochure E-Next (EN/FR/ES) • Technical datasheet E-Next (EN/ES)
