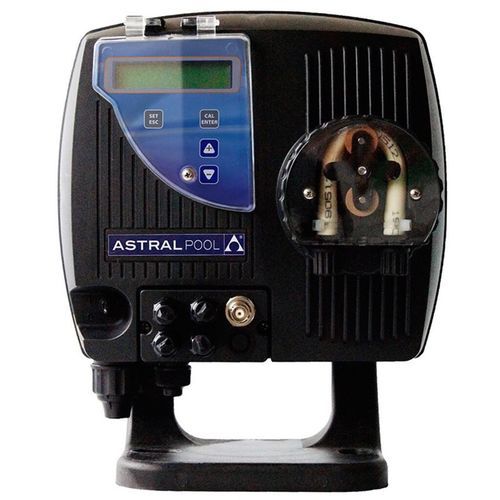

Spa dosage system CONTROL BASIC PLUS

industrialfor swimming poolelectronic

Description

• Supplied without sensors or calibration solutions; installation kit included
• Plastic enclosure, protection rating IP-65
• Backlit LCD display, 2 lines x 16 characters
• Automatic sensor calibration and integrated sensor quality check
• Proportional dosing with set-point adjustment
• Dosage pause on alarm with flashing LED indication
• Flow rates available: 1.5 L/h or 5.0 L/h; maximum back pressure 1.5 bar
• Measurement ranges: pH 0.00–14.00; Redox (ORP) -999 to +999 mV
• Inputs/outputs: switch, alarm relay, minimum chemical level input, PT100 temperature input (probe optional)

References
CODE | Description | Spare parts
66159 | Control Basic 1.5 L/h | See spare parts
66160 | Control Basic 5.0 L/h | See spare parts
66758 | PT100 probe | -

Documents available (product sheet excerpts)

• Manual EN ES FR +
• Manual EN ES FR + (Control Basic Plus version)
• Commercial brochure FR
• Technical sheet EN ES FR +

Technical specifications

• Power supply: (not specified on page)
• Enclosure material: plastic; ingress protection IP-65
• Display: backlit LCD, 2 lines x 16 characters
• Sensor functions: automatic calibration, sensor quality control
• Dosing functions: proportional dosing, pause on alarm, adjustable set-point
• Nominal flow rates: 1.5 L/h and 5.0 L/h (two versions)
• Maximum back pressure: 1.5 bar
• Measurement ranges: pH 0.00–14.00; Redox -999 to +999 mV
• I/O: switch, alarm relay, minimum chemical level input, PT100 temperature input (probe optional)
• Accessories supplied: installation kit
• Remarks: supplied without sensors or calibration solutions

Applications

• Water treatment and chemical dosing for swimming pools and spas
• Industrial water circuits, cooling towers and process water regulation
• Small to medium chemical dosing installations requiring pH or ORP control

Accessories & options

• pH and Redox sensors, calibration solutions, PT100 temperature probe (optional), spare parts for pumps and sensors
