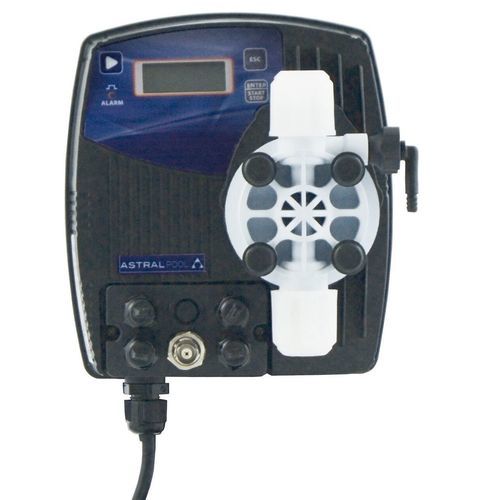

Commercial dosage system OPTIMA NEXT

for swimming poolelectronicautomatic

Product description
OPTIMA Next dosing pump with integrated pH/Redox control instrument. Automatic calibration via a single button and sensor efficiency monitoring. Probe/sensor not included.

Features

• Integrated pH/Redox control instrument
• Automatic calibration with single-button operation
• Sensor efficiency monitoring
• Power supply: 90–265 VAC, 50–60 Hz (without plug)
• Temperature compensation: manual for pH or optional automatic via PT100 (sensor not included)
• 4–20 mA output for logging or transmission of measured value
• Level alarm with pump shutdown or product-empty warning via alarm relay
• Programmable setpoint deviation alarm across the measurement range
• Dosing delay to avoid injection in case of sensor malfunction
• Maximum flow: 5 l/h; maximum pressure: 8 bar
• Maximum flow limitation to prevent unintended overdosing
• Password protection for programmed data
• Level control input and remote ON/OFF control
• Possibility to connect external alarms

Table
CODE | Description | Spare Parts
66166 | OPTIMA Next dosing pump pH/Redox control, 8 bar, 5 l/h | See Spare Parts

Brochure / Manual
Product brochure available. Multilingual installation manual (EN, ES, FR, DE, IT, PT) available in PDF.

Technical specifications

• Code: 66166
• Model: OPTIMA Next
• Function: Dosing pump with built-in pH/Redox control instrument
• Calibration: Automatic via single-button
• Sensor efficiency monitoring: Yes
• Power supply: 90–265 VAC, 50–60 Hz (without plug)
• Temperature compensation: Manual for pH; optional automatic with PT100 (sensor not included)
• Maximum pressure: 8 bar
• Maximum flow: 5 l/h
• Outputs/Inputs: 4–20 mA output, level control input, remote ON/OFF
• Alarms & safety: Level alarm with pump shutdown, programmable setpoint deviation alarm, dosing delay, maximum flow limitation, password protection
