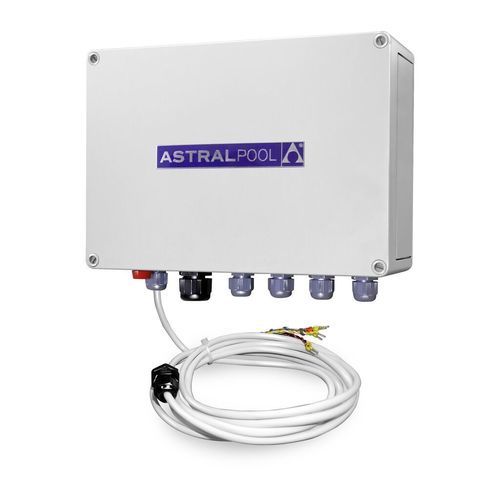

Wall-mounted relay box COFFRET RELAIS

outdoorequippedIP55

Product overview

• Prewired relay box for easy integration between Elite Connect, Neolysis Connect or Control Connect and pool equipment.

Key features

• 4 power outputs for filtration pump, heater, lighting and accessories
• IP55 waterproof enclosure suitable for poolside installations
• All outputs protected by fuses
• Designed for straightforward control via compatible automation devices

Outputs details

• 1 x 230 Vac primary output for:
  • Filter pump up to 3 HP
  • Or any device up to 10 A / 2.3 kW
• 3 x 230 Vac secondary outputs for:
  • Filter pump up to 1/3 HP each
  • Or any appliance up to 6.5 A / 1.5 kW each

Table
CODE | Description | Spare Parts
72454 | Relay box | See Spare Parts

Applications

• Control of filter pumps, heaters, lighting and other pool devices; integration in pool automation and remote control systems.

Technical specifications

• Model code: 72454
• Number of power outputs: 4 (1 primary + 3 secondary)
• Primary output: 1 x 230 Vac — up to 3 HP or up to 10 A / 2.3 kW
• Secondary outputs: 3 x 230 Vac — each up to 1/3 HP or up to 6.5 A / 1.5 kW
• Enclosure rating: IP55 (waterproof)
• Protection: all outputs fused
• Compatibility: Elite Connect, Neolysis Connect, Control Connect
